HMS5 RG |
SKF
32X52X7 HMS5 RG
| Quantity: | |
|---|---|

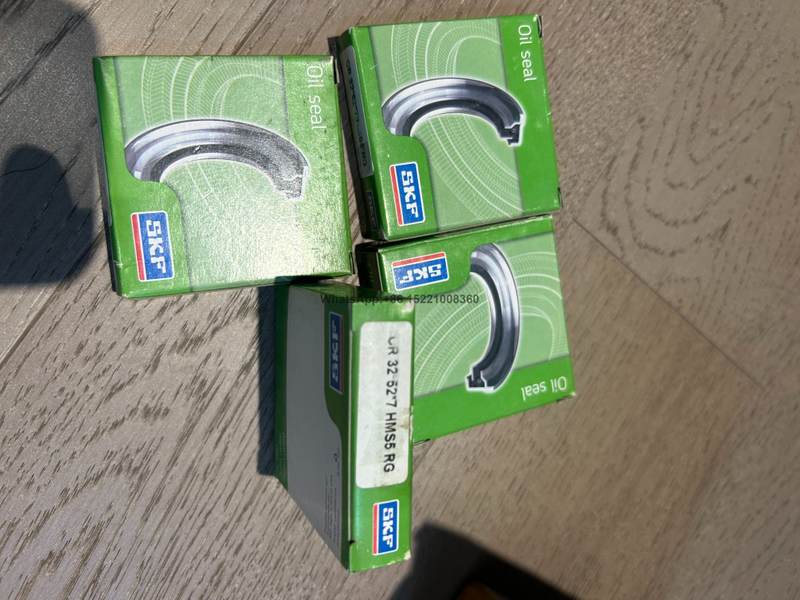

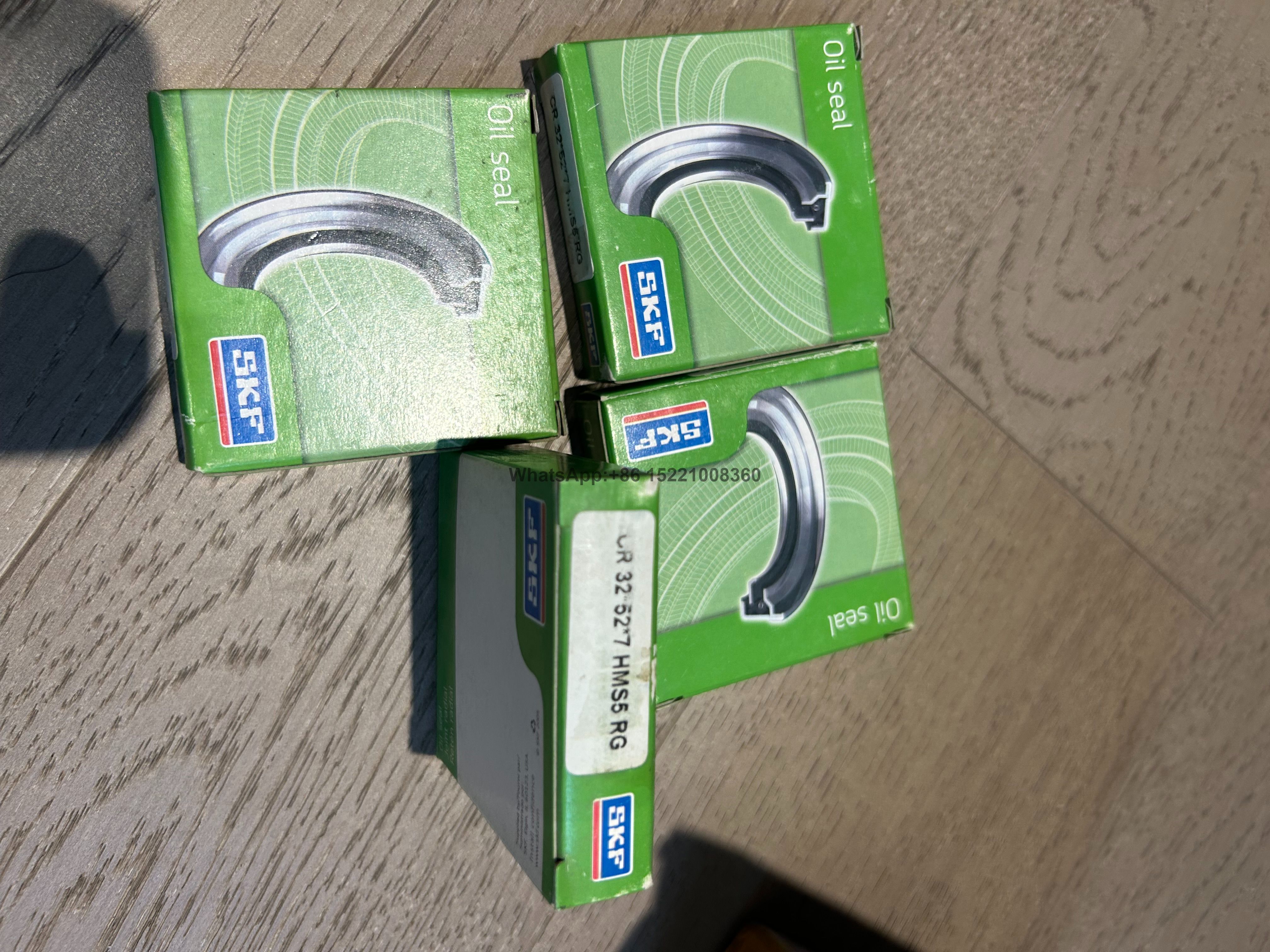

32X52X7 HMS5 RG SKF Seal, 32mm ID, 52mm OD, 7mm Radial Shaft Seals
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMS5 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer with a garter spring to maintain the right radial load.
High pumping rate
With garter spring
Accommodate misalignment
| Shaft diameter | 32 mm |
| Housing bore diameter | 52 mm |
| Seal width | 7 mm |
| Limiting speed | 3 600 r/min |
| Maximum operating temperature | 100 °C |
| Minimum operating temperature | -40 °C |
| Permissible circumferential speed | 6.03 m/s |
| Rotational speed | 3 600 r/min |
| Design | HMS5 |
| Auxiliary lip | No |
| Sealing lip material | Nitrile rubber (NBR) |
| Type of outside diameter | Rubber metal reinforced |
| Unit system | Metric |
| Product net weight | 0.0144 kg |
| eClass code | 23-07-08-01 |
| UNSPSC code | 31181602 |
