120X200X14 HMSA10 RG
SKF
HMSA10 RG
| Quantity: | |
|---|---|

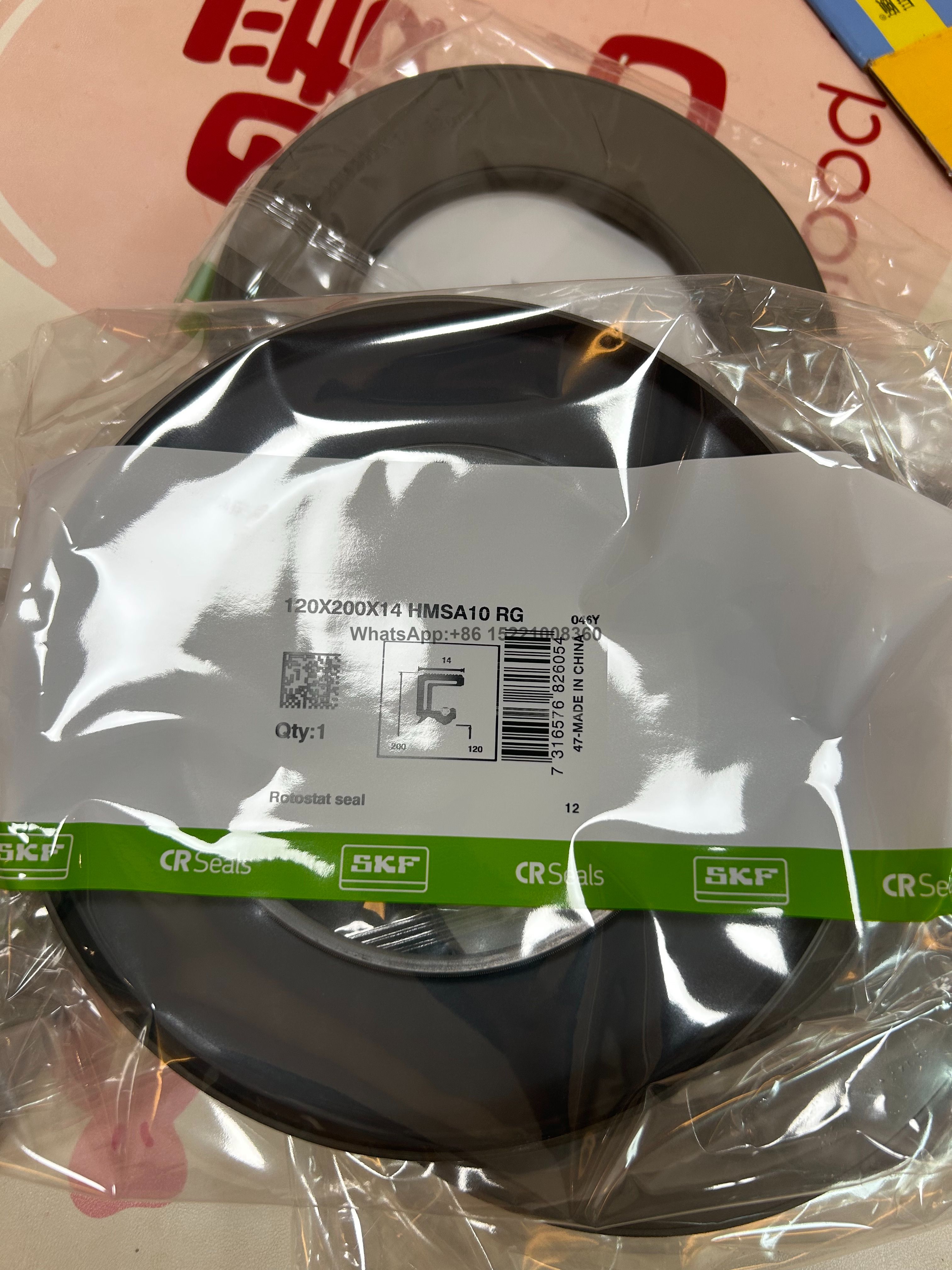

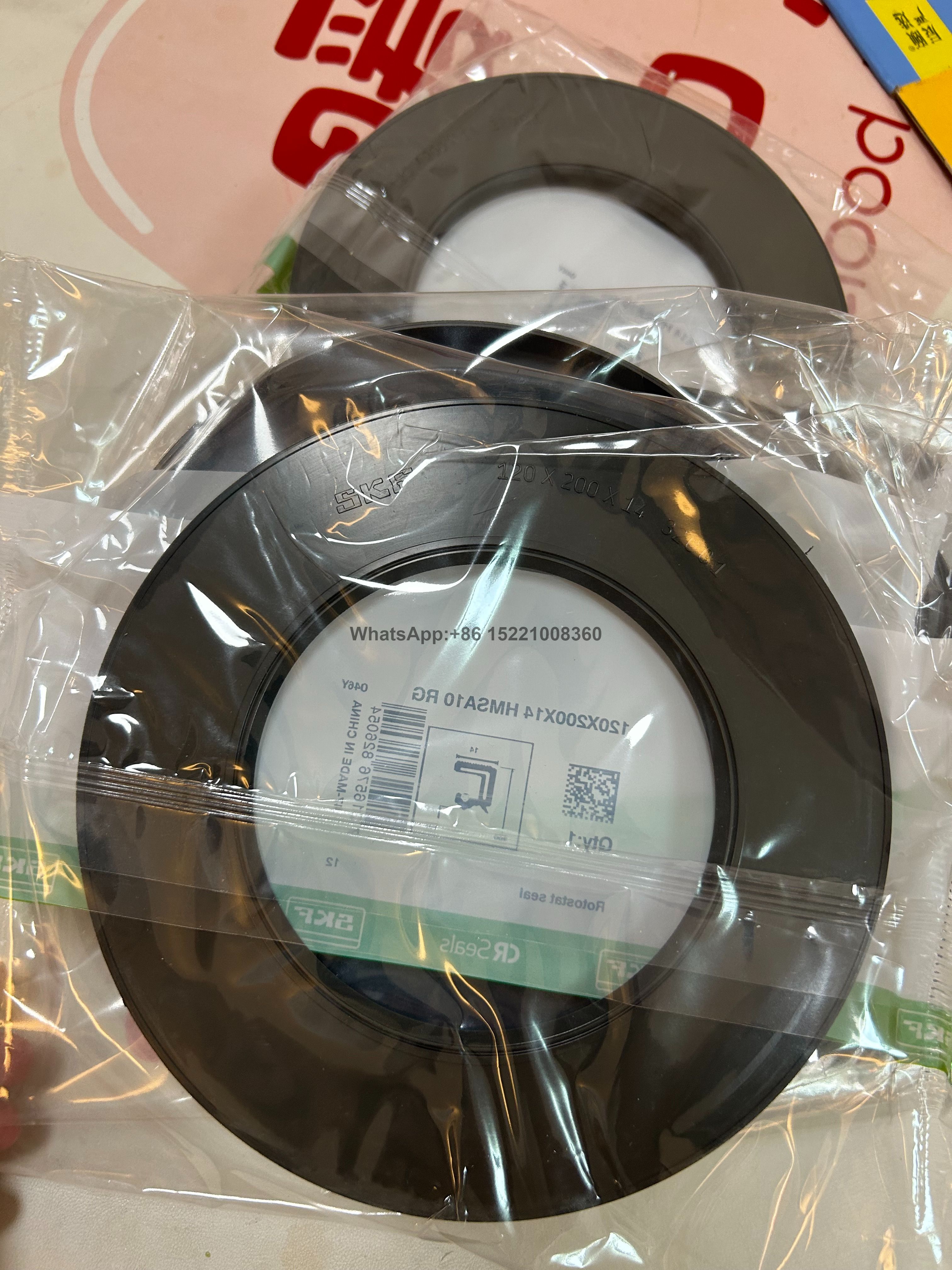

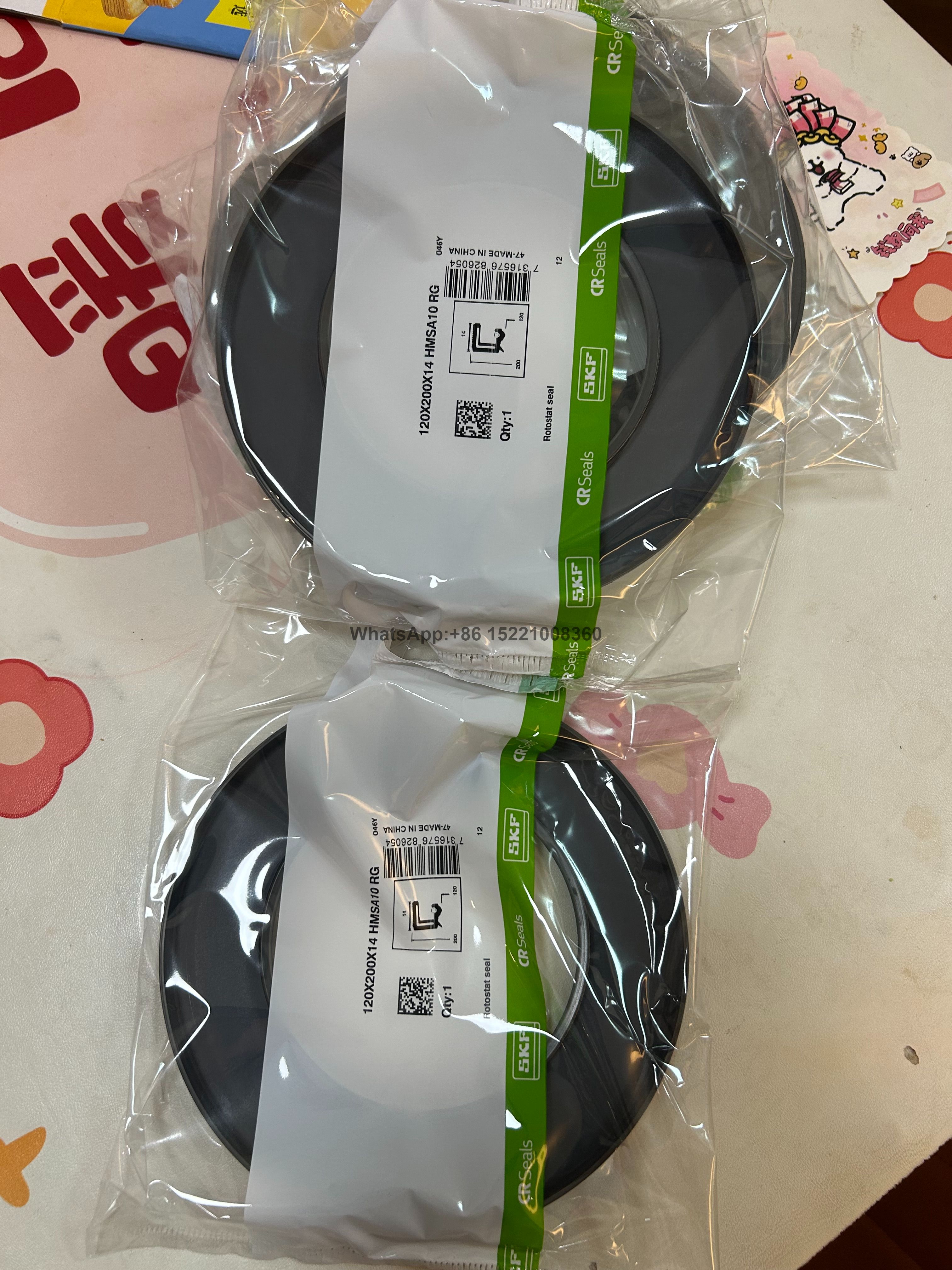

120X200X14 HMSA10 RG - Radial Shaft Seals
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environment.
High pumping rate
Higher contamination exclusion with dust lip
With garter spring
Accommodate misalignment
| Shaft diameter | 4.724 in |
| Housing bore diameter | 7.874 in |
| Seal width | 0.551 in |
| Limiting speed | 1 813 r/min |
| Maximum operating temperature | 212 °F |
| Minimum operating temperature | -40 °F |
| Permissible circumferential speed | 2 242.126 ft/min |
| Rotational speed | 1 813 r/min |
| Design | HMSA10 |
| Auxiliary lip | Yes |
| Sealing lip material | Nitrile rubber (NBR) |
| Type of outside diameter | Rubber metal reinforced |
| Unit system | Metric |
| Product net weight | 0.5952 lb |
| eClass code | 23-07-08-01 |
| UNSPSC code | 31181602 |
