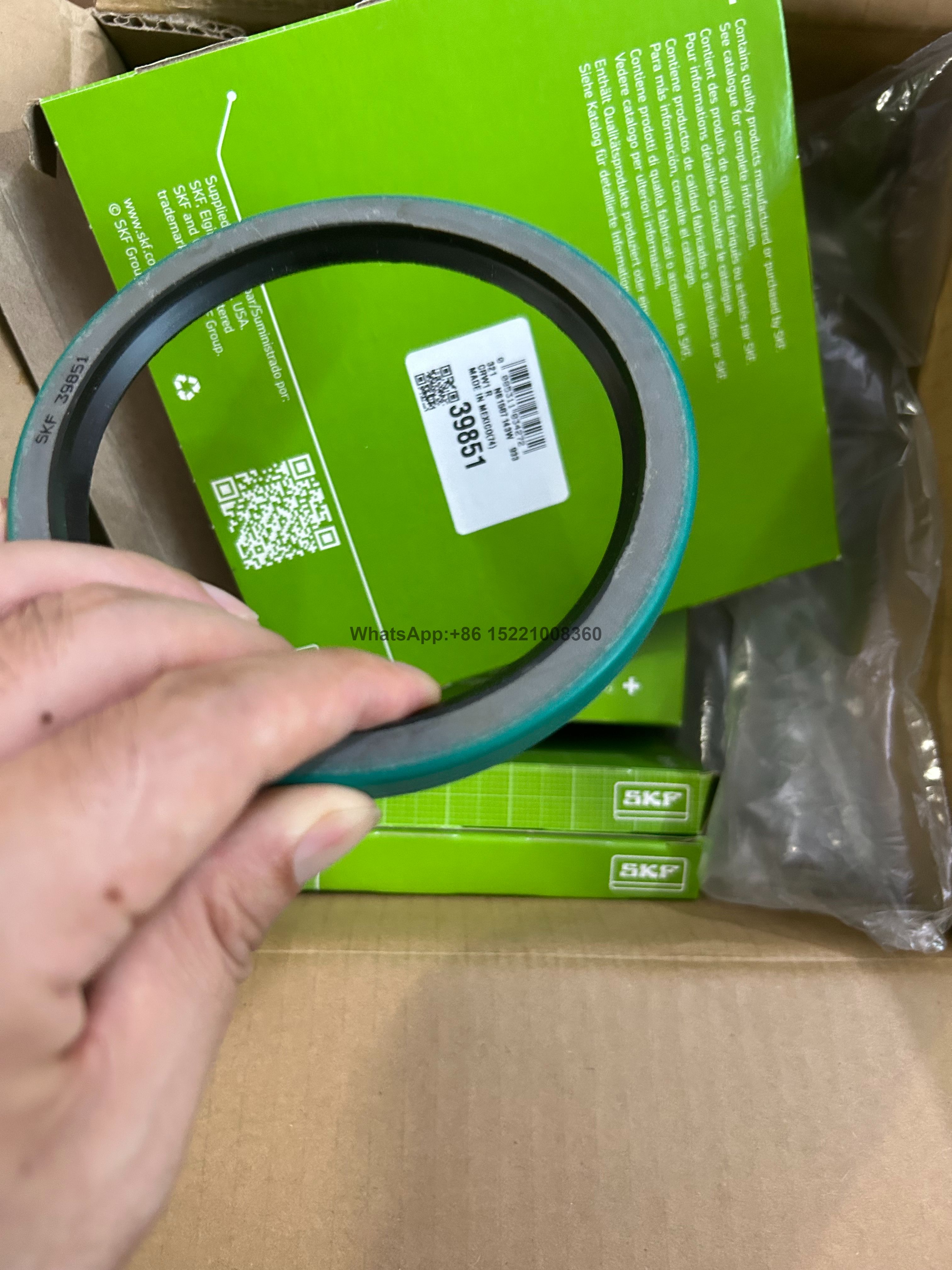

CR Seals SKF 39851 Radial Shaft Seals

39851
Radial shaft seal with metal case and SKF Wave lip, for oil or grease
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. CRW1 seals are designed with a metal case, an SKF WAVE lip made of elastomer with higher pumping rate to reduce heat generation, and a garter spring to optimize sealing against the shaft. Most of the seals feature the SKF Bore Tite coating on the outside diameter that helps fill small imperfections in the housing bore.
For oil or grease
With garter spring
WAVE lip creates higher pumping rate
WAVE lip has less friction between shaft and lip
WAVE lip has a lower temperature at the contact point
  • 39851

  • SKF

  • 39851

Availability:
Quantity:

CR Seals SKF 39851 Radial Shaft Seals

Dimensions

Shaft diameter101.6 mm
Housing bore diameter123.85 mm
Seal width11.13 mm

Performance

Limiting speed2 040 r/min
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Permissible circumferential speed10.71 m/s
Rotational speed2 040 r/min

Properties

DesignCRW1
Auxiliary lipNo
Sealing lip materialNitrile rubber (NBR)
Type of outside diameterMetal-cased with sealant coating on the outside diameter
Unit systemInch

Logistics

Product net weight0.0703 kg
eClass code23-07-08-01
UNSPSC code31181602
