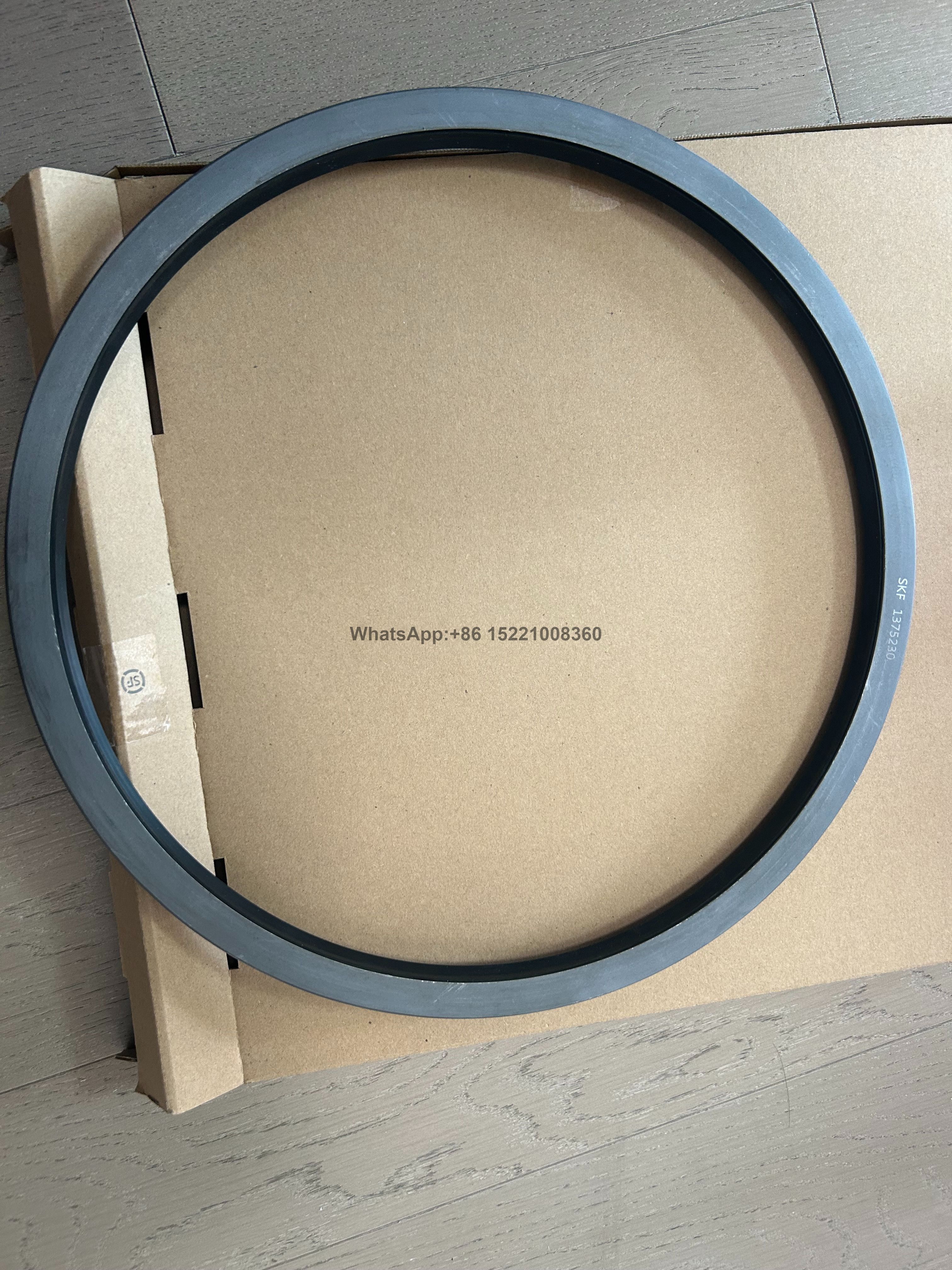

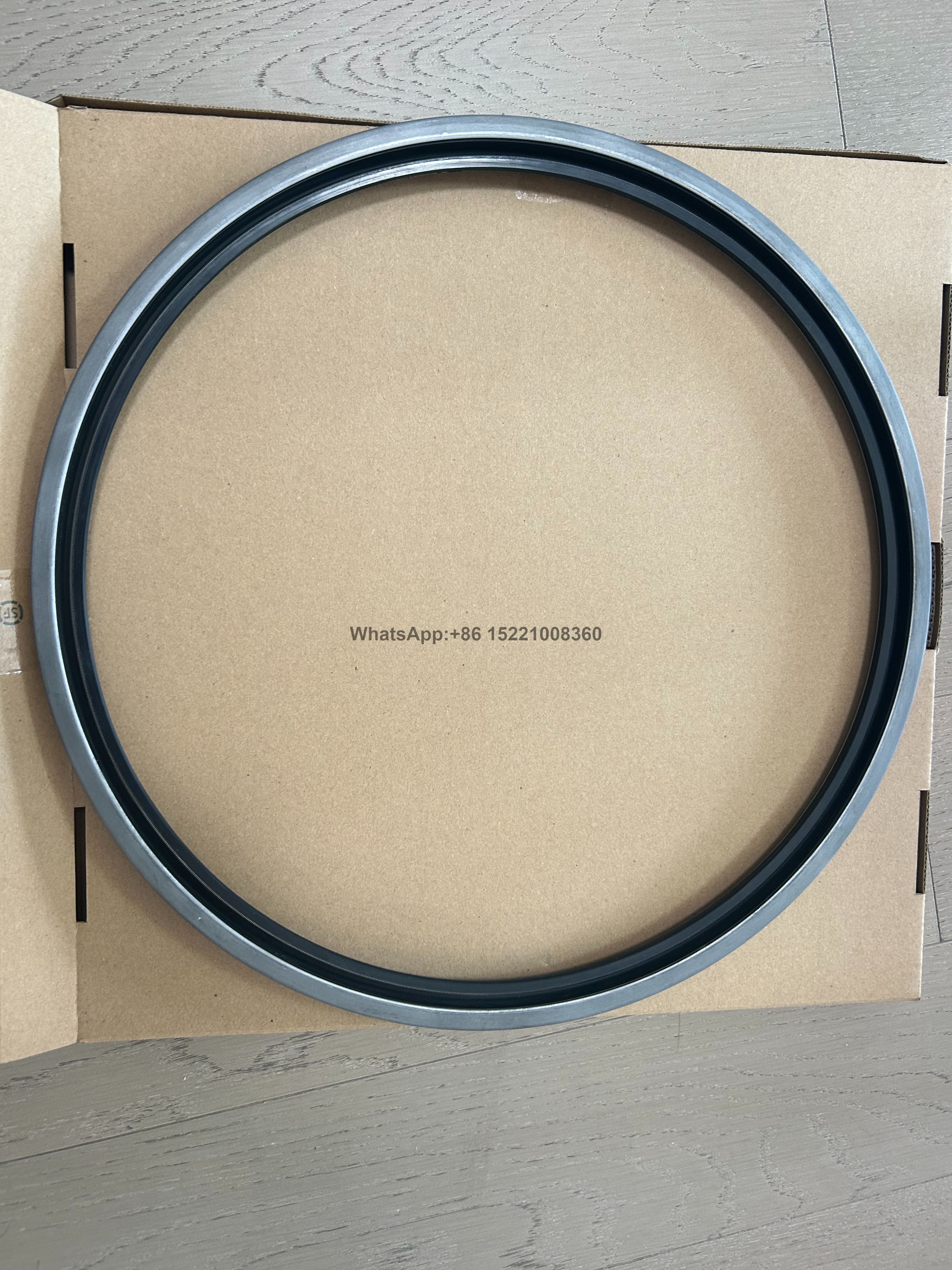

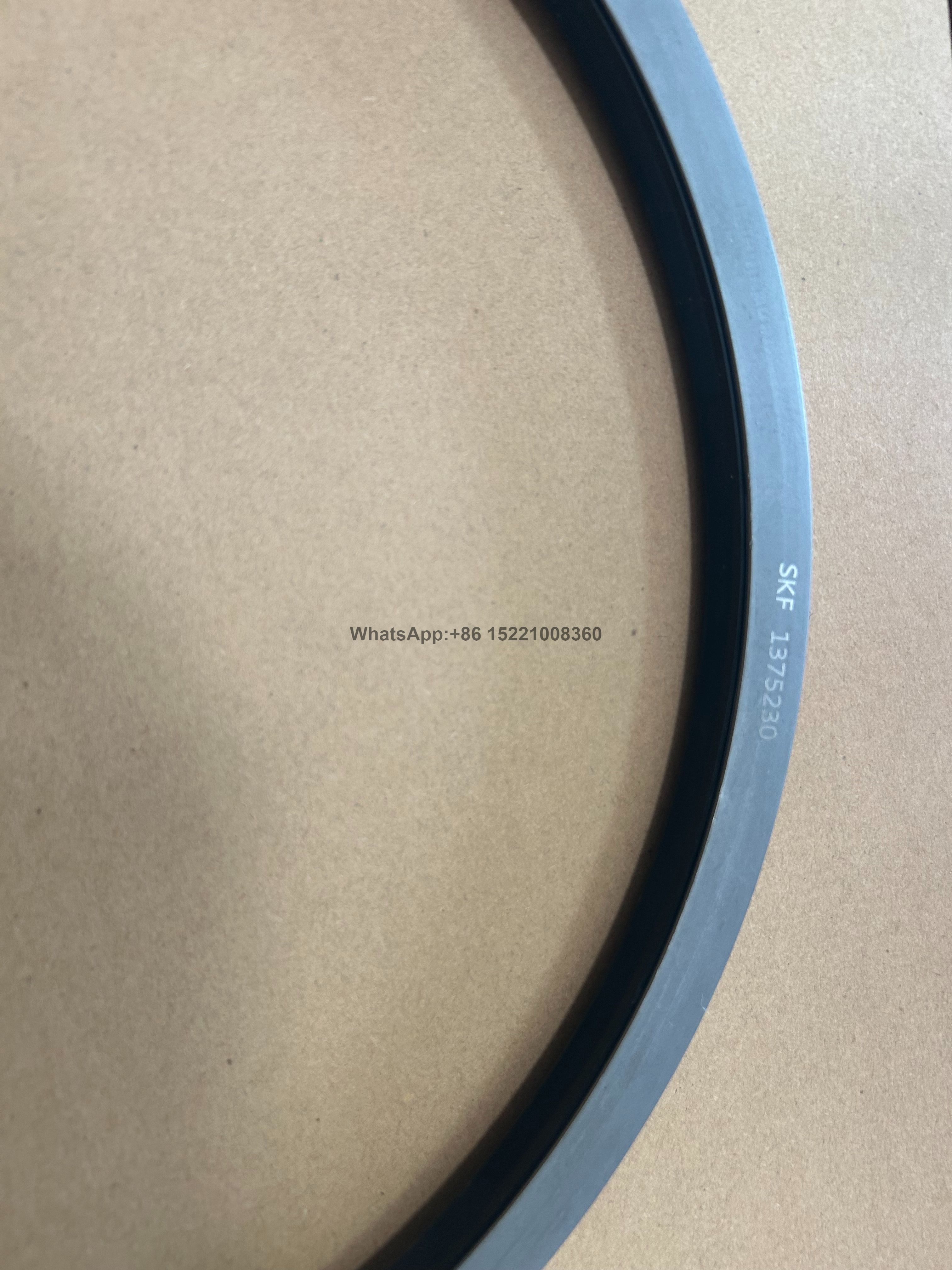

CR Seals (SKF) 1375230
Single Lip Oil Seal - Solid, 13.750 in Shaft Dia., 15.250 in OD, 0.625 in Overall Width, HDS1 Design, Nitrile Rubber (NBR) Lip Material
Specifications
Solid / Split
Solid
Shaft Diameter
13.750 in
Outside Diameter
15.250 in
Overall Width
0.625 in
Design Type
HDS1
Seal Type
Rotary shaft seal/Radial shaft seal
Lip Material
Nitrile Rubber (NBR)
Lip Type
Straight lip
Number of Lips
1
Casing
Steel
Case Design
Metal case
Operating Temperature Range
-40 to 210 °F
Pressure Tolerance
15 psi
Spring Type
Garter Spring
Spring Material
Stainless Steel
Manufacturer Upc Number
085311122597
Compatible V-Rings
403453;403500;403502;403504;403506
Lubricant Type
Oil or Grease
Construction Description
Oil seal, Heavy Industrial, SKF Flex
Installation Method
Housing press fit
Typical Application
General machinery, industrial gearboxes, rolling mills, hot strip mills, cold rolling mills, paper mills
Weight
2.55 lbs
