20X35X7 HMS5 RG
SKF
HMS5 RG
| Quantity: | |
|---|---|

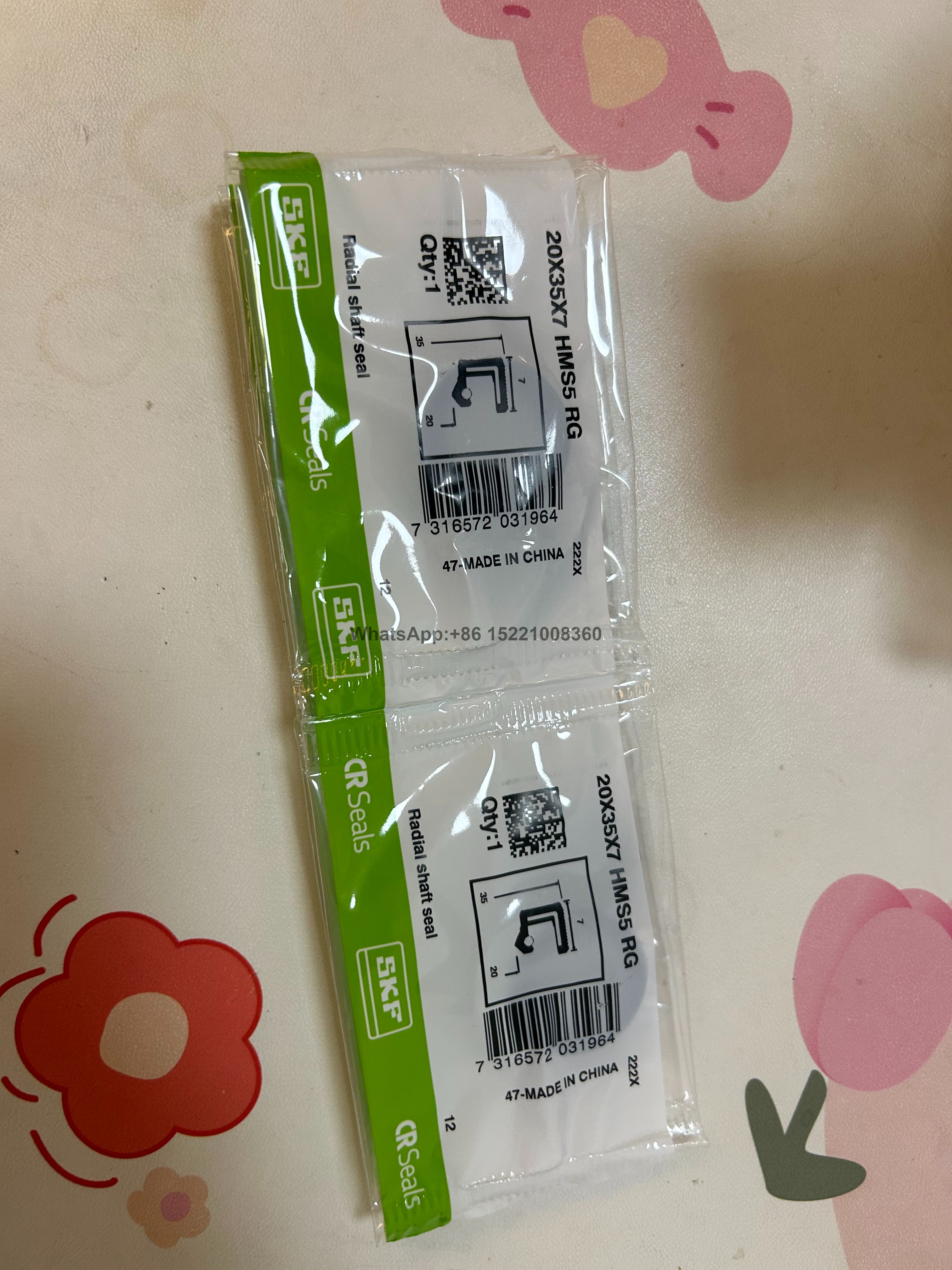

20X35X7 HMS5 RG - Radial Shaft Seals Oil Seal
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMS5 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer with a garter spring to maintain the right radial load.
High pumping rate
With garter spring
Accommodate misalignment
| Shaft diameter | 20 mm |
| Housing bore diameter | 35 mm |
| Seal width | 7 mm |
| Limiting speed | 3 960 r/min |
| Maximum operating temperature | 100 °C |
| Minimum operating temperature | -40 °C |
| Permissible circumferential speed | 4.1 m/s |
| Rotational speed | 3 960 r/min |
| Design | HMS5 |
| Auxiliary lip | No |
| Sealing lip material | Nitrile rubber (NBR) |
| Type of outside diameter | Rubber metal reinforced |
| Unit system | Metric |
| Product net weight | 0.0087 kg |
| eClass code | 23-07-08-01 |
| UNSPSC code | 31181602 |
