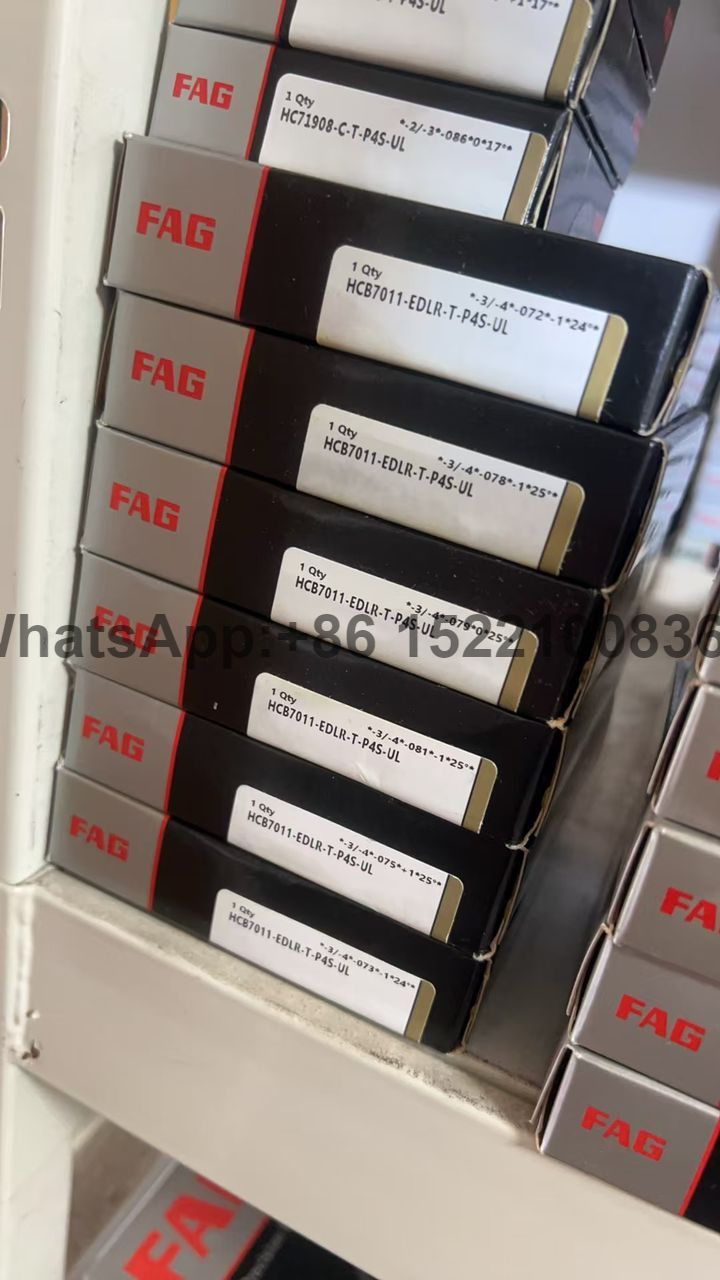

FAG HCB7011-EDLR-T-P4S-UL Spindle-Bearings

HCB7011-EDLR-T-P4S-UL FAG

HCB hybrid spindle bearing with large ceramic balls

Specifications

• Availability0 pcs

• BrandFAG

• Item NumberHCB7011-EDLR-T-P4S-UL FAG

• Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

• Inner (d) MM55

• Outer (D) MM90

• Width (B) MM18

• Weight (kg)0.32

Product Properties

• SealNo Seal

• Cage TypeTB - Hard Fiber Cage

• PrecisionP4S Precision (Higher than P4)

• Contact Angle25 degrees

• PairingG - Universal Pairing

• Axial Internal Clearance / PreloadUL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements

• LubricationDLR

Data from Schaeffler (medias)

• Width (b) mm18

• Radial Static Load Rating C0r (N)20100

• Radial Dynamic Load Rating Cr (N)37000

• Basic static load rating, radial (C 0r)"20100.0000"

• Limiting speed for grease lubrication (n G Grease)20000

• Limiting speed for oil lubrication (n G Oil)30000

• ECLASS number23-05-08-03

• ECLASS2 number23-05-08-03

• Medias descriptionSpindle bearings HCB70..-EDLR, adjusted, matched pairs or sets, contact angle a = 25°, with ceramic balls, restricted tolerances, for direct oil feed via outer ring, with inserted O rings
