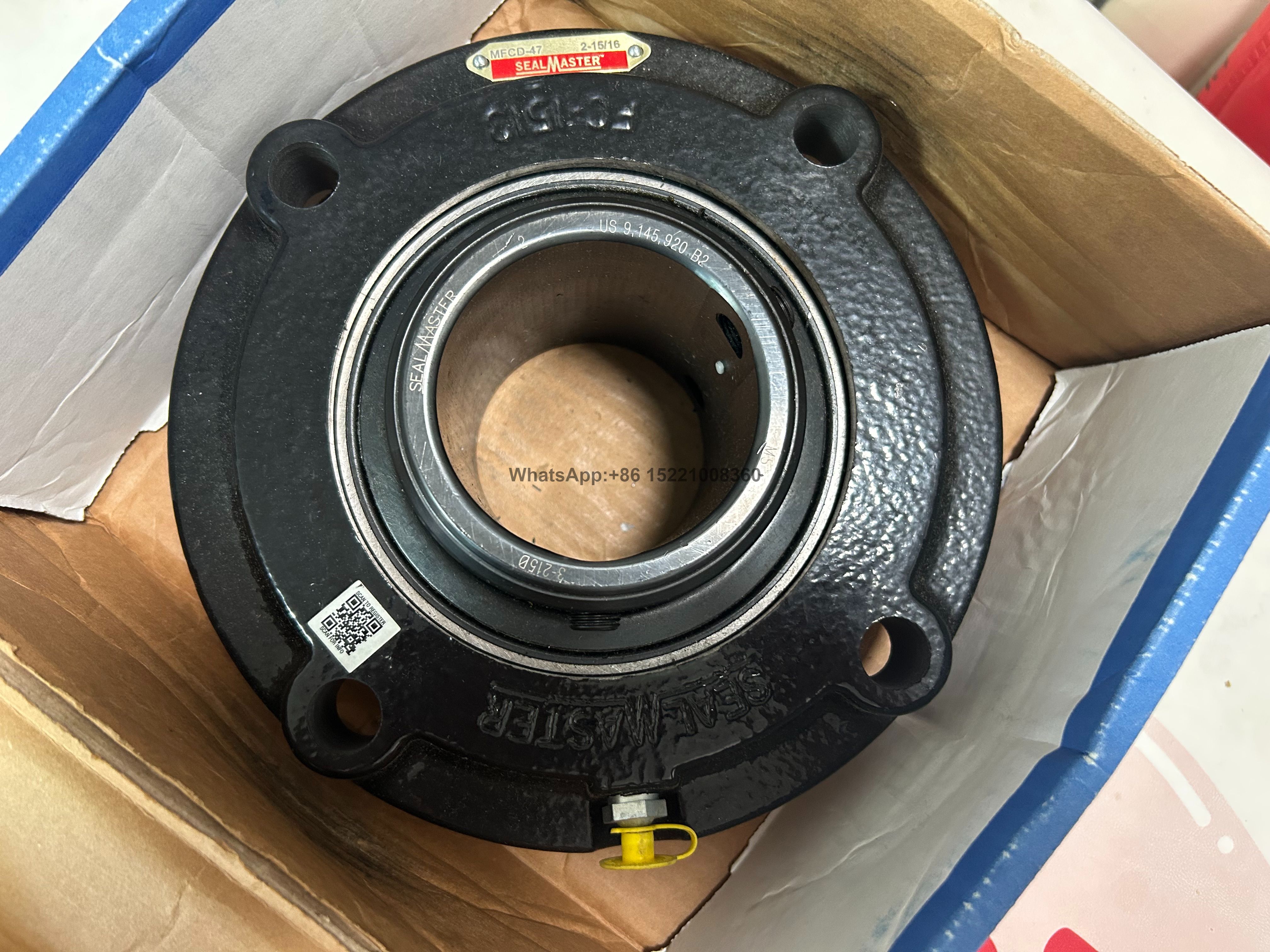

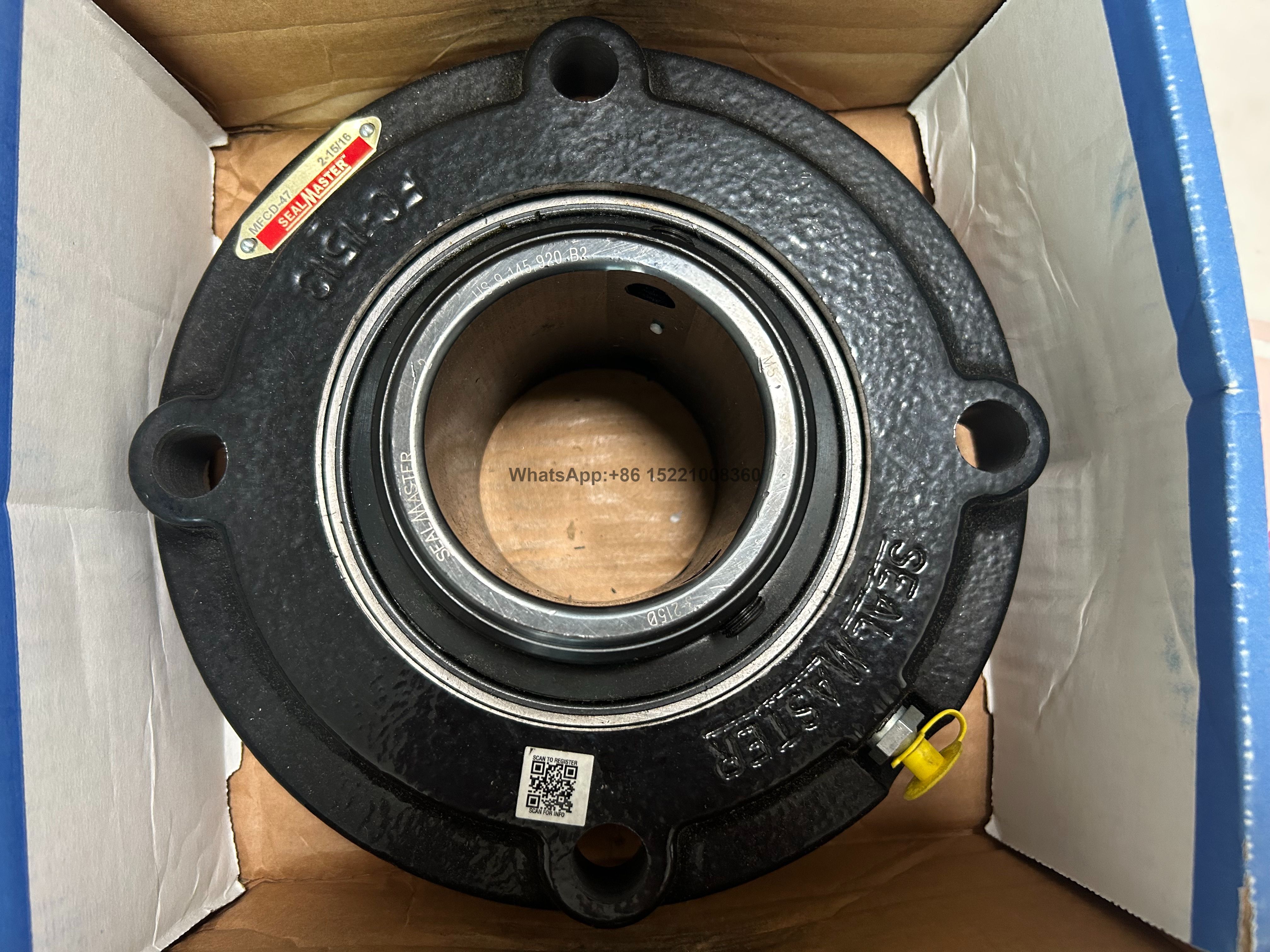

MFC-47 Flange Mount Bearing NEW OPEN SEALMASTER MFCD-47 2 15/16 (3-215D)

Specifications

• Product Type
  Flange-Mount Ball Bearing Units
• Bore Diameter
  2-15/16 in
• Housing Material
  Cast Iron
• Duty Type
  Medium Duty
• Bolt Center To Center Length
  7.5000 in
• Overall Length
  8.7500 in
• Bolt Circle Diameter
  7.5000 in
• Locking Device
  Set Screw
• Expansion Type
  Non-Expansion Bearing (Fixed)
• Seal Type
  Felt Labyrinth Seal
• Overall Length Diameter
  8.7500 in
• Overall Height
  2.0000 in
• Housing Width
  8.7500 in
• Lubrication Type
  Lithium Complex NLGI 2 Grease
• Overall Width
  8.7500 in
• Bore Type
  Straight
• Inner Ring Width
  3.9220 in
• Bearing Material
  52100 Bearing Steel, Black Oxided
• Radial Dynamic Load Capacity
  17412 lbf
• Radial Static Load Capacity
  13174 lbf
• Length Through Bore
  3.9220 in
• Operating Temperature Range
  -20° to 220 °F
• Max Operating Temperature
  220 °F
• Finish Coating
  Gray
• Pilot Diameter
  6.3750 in
• Bolt Size
  0.6250 in
• Max Rpm
  3150 rpm
• Series
  MFCD
• Replacement Bearing
  3-215D
• Color
  Gray
• Lubrication
  Lithium Complex NLGI 2 Grease
• Lubricant
  Lithium Complex NLGI 2 Grease
• Manufacturer Catalog Number
  MFCD-47
• Manufacturer Upc Number
  662461017074
• UPC_NO
  662461017074
• Weight
  20.47 lbs
• Type Of Bearing
  Ball
• Mounting Type
  4-Bolt Piloted Flange
