VEGA VEGABAR 66
VEGA
VEGABAR 66
| Quantity: | |
|---|---|

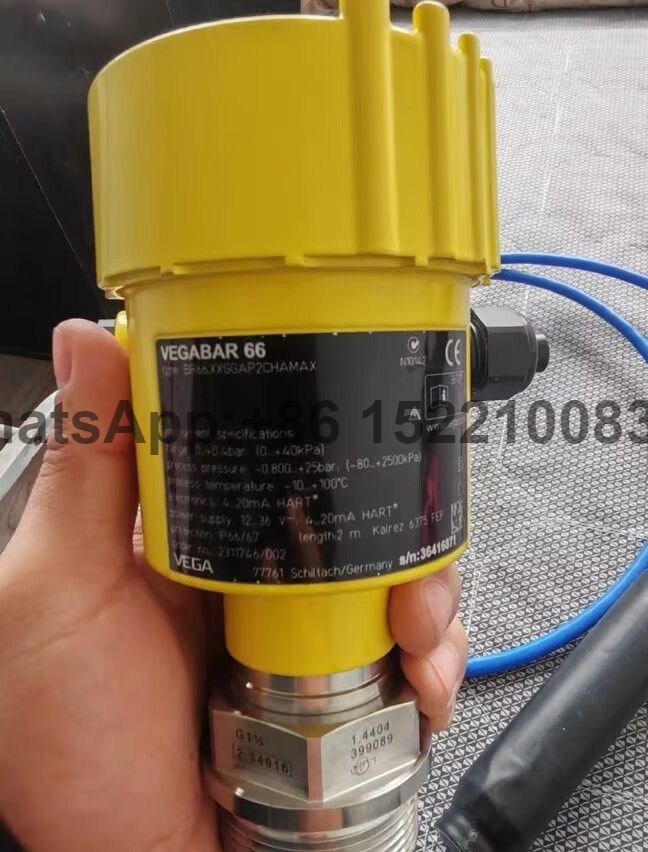

VEGA VEGABAR 66 Pressure Transmitter HYDROSTATIC PRESSURE VEGABAR 66
VEGABAR 66 Suspension pressure transmitter with CERTEC® measuring cell Application area The VEGABAR 66 is a suspension pressure transmitter for level measurement in wells, basins and open vessels. The flexibility through different cable and rod versions offers the possibility to use VEGABAR 66 in a variety of applications. Advantages High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell Self-cleaning effect through front-flush design Low costs for maintenance through wear-free ceramic measuring cell Technical data Measuring cell: CERTEC® Sensor diameter: 32 mm Measuring range: 0 … +25 bar (0 … +2500 kPa) Process fitting: thread from G1½, 1½ NPT flanges from DN 40, 2" Process temperature: -40 … +100 °C Deviation of characteristics: 0.1 % SIL qualification: up to SIL2
Application area
The VEGABAR 66 is a suspension pressure transmitter for level measurement in wells, basins and open vessels. The flexibility through different cable and rod versions offers the possibility to use VEGABAR 66 in a variety of applications.
High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell
Self-cleaning effect through front-flush design
Low costs for maintenance through wear-free ceramic measuring cell
| Measuring cell | CERTEC |
| Sensor diameter | 32 mm |
| Measuring range | 0 … +25 bar (0 … +2500 kPa) |
| Process fitting | thread from G1½, 1½ NPT flanges from DN 40, 2' |
| Process temperature | -40 … +100 °C |
| Deviation in characteritics | 0.1 % |
| SIL qualification | optionally up to SIL2 |
