CTCS-50KC
CURIOSITY
| Quantity: | |
|---|---|

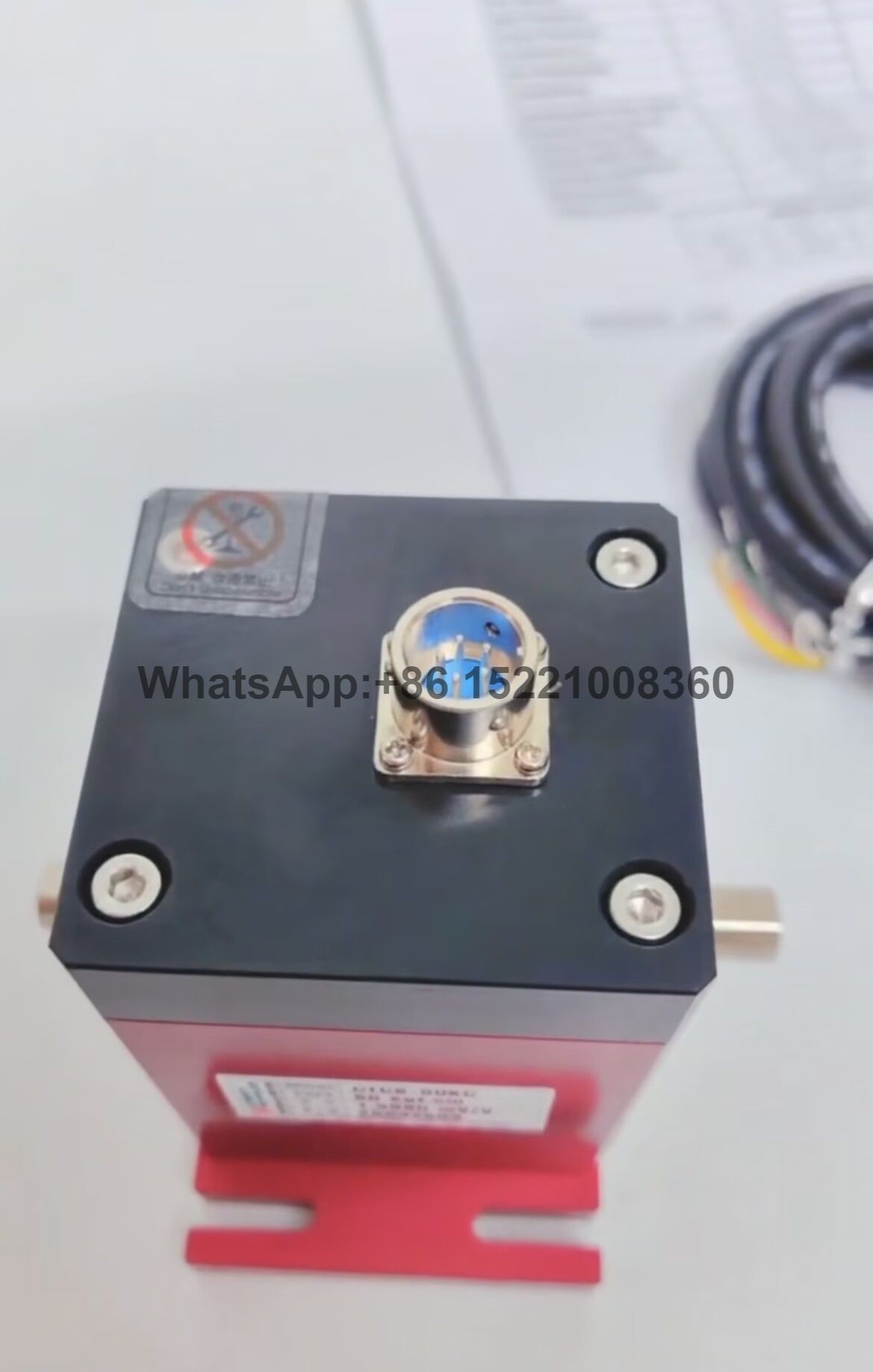

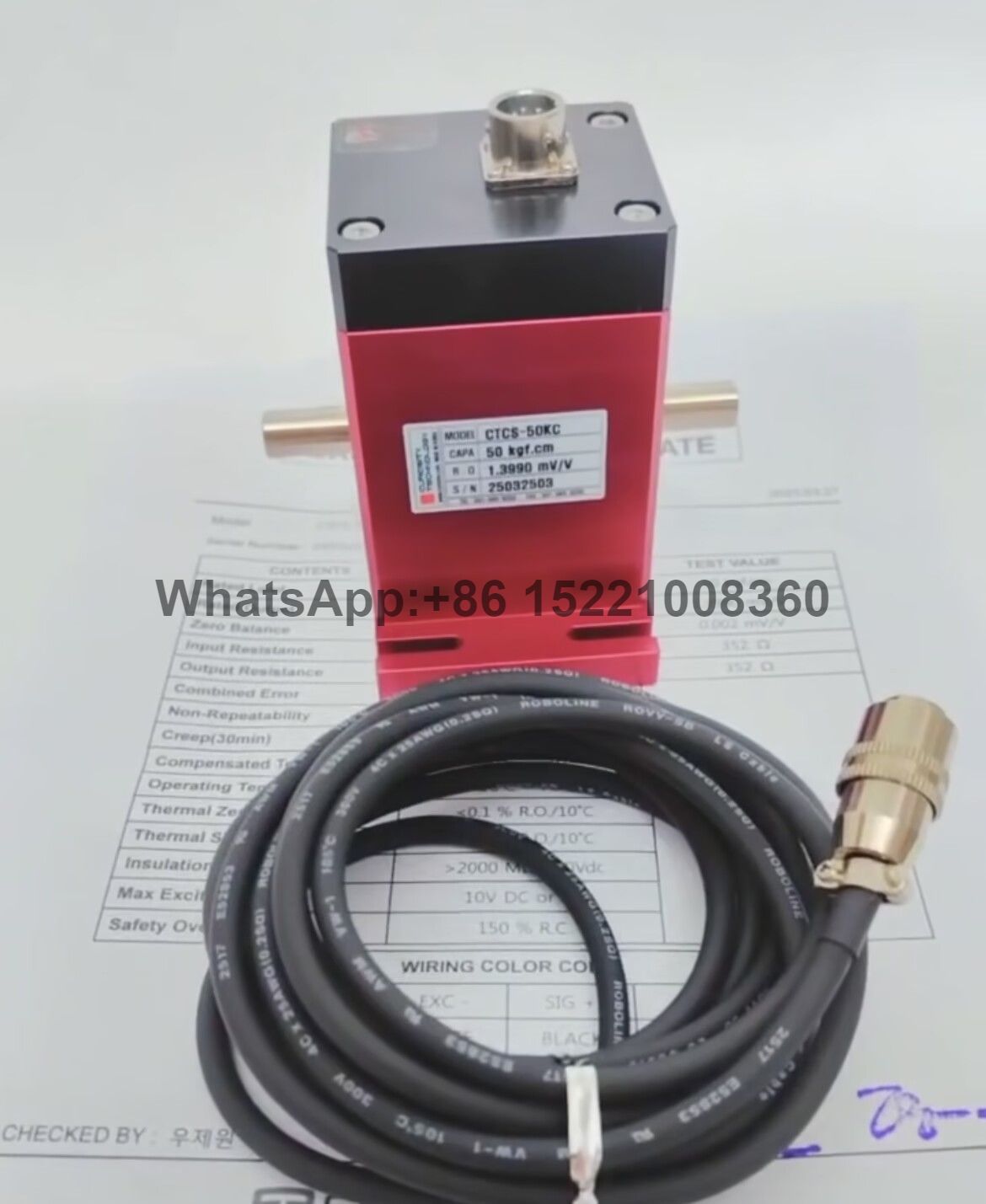

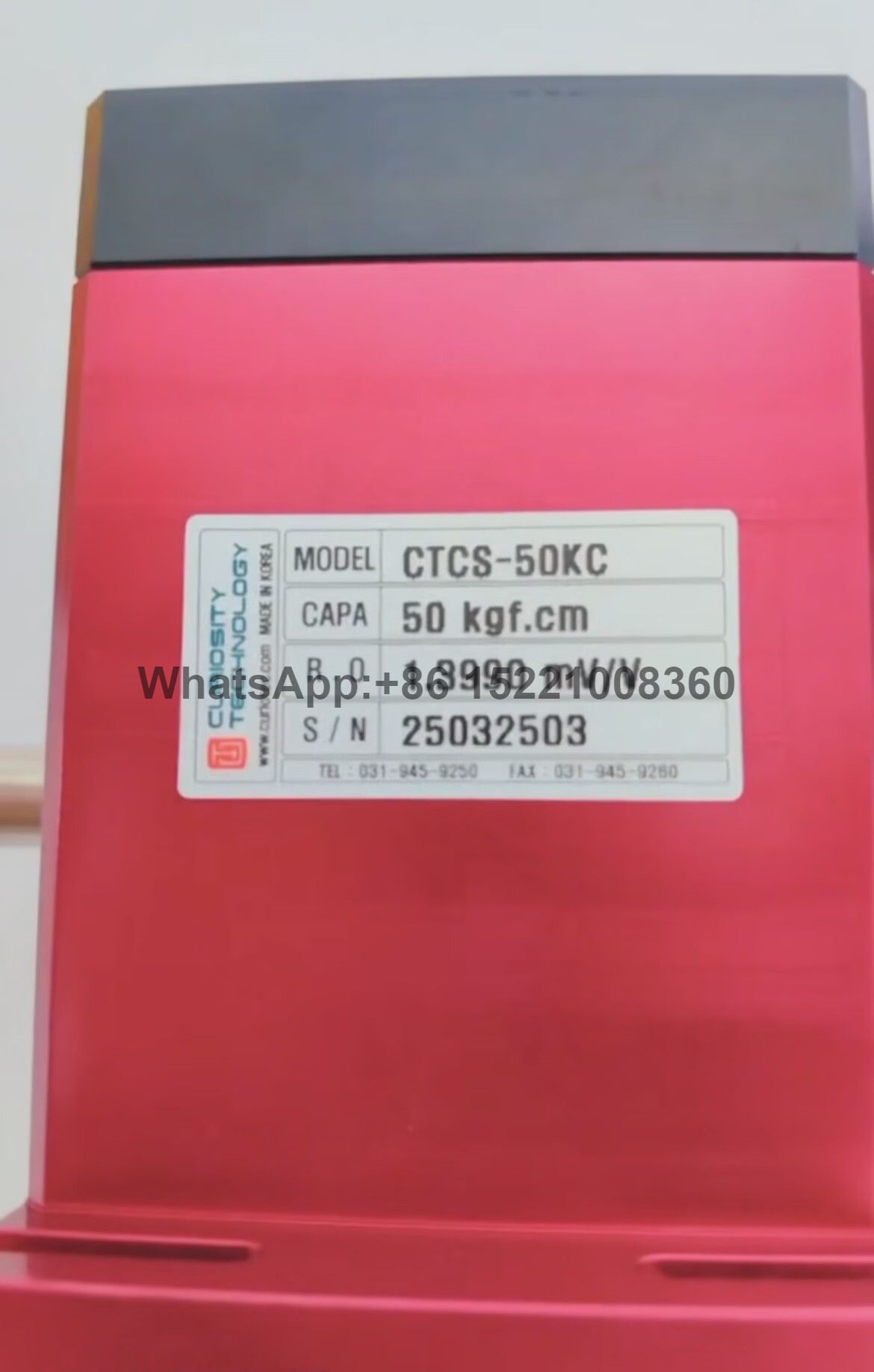

Torque sensor CURIOTEC CTCS-50KC
Rated capacity (R.C): 50 kgf.cm
Rated output (R.0): 1.5 mV/V
Non-linearity: ≤0.3 %RO
Hysteresis: ≤0.3 %RO
Non-Repeatability: ≤0.3 %RO
Terminal resistance( input): 350Ω ±1%
Terminal resistance (output): 350Ω ±1%
Insulation resistance: 2000 ㏁
Temp. effect on rated output: ≤0.1 %LOAD/10℃
Temp. effect on zero balance: ≤0.1 %RO/10℃
Excitation Voltage: 10 VDC
Safe overload: 150 %RC
Cable: Φ7 shield 5m
Maximum RPM: 6000 RPM
