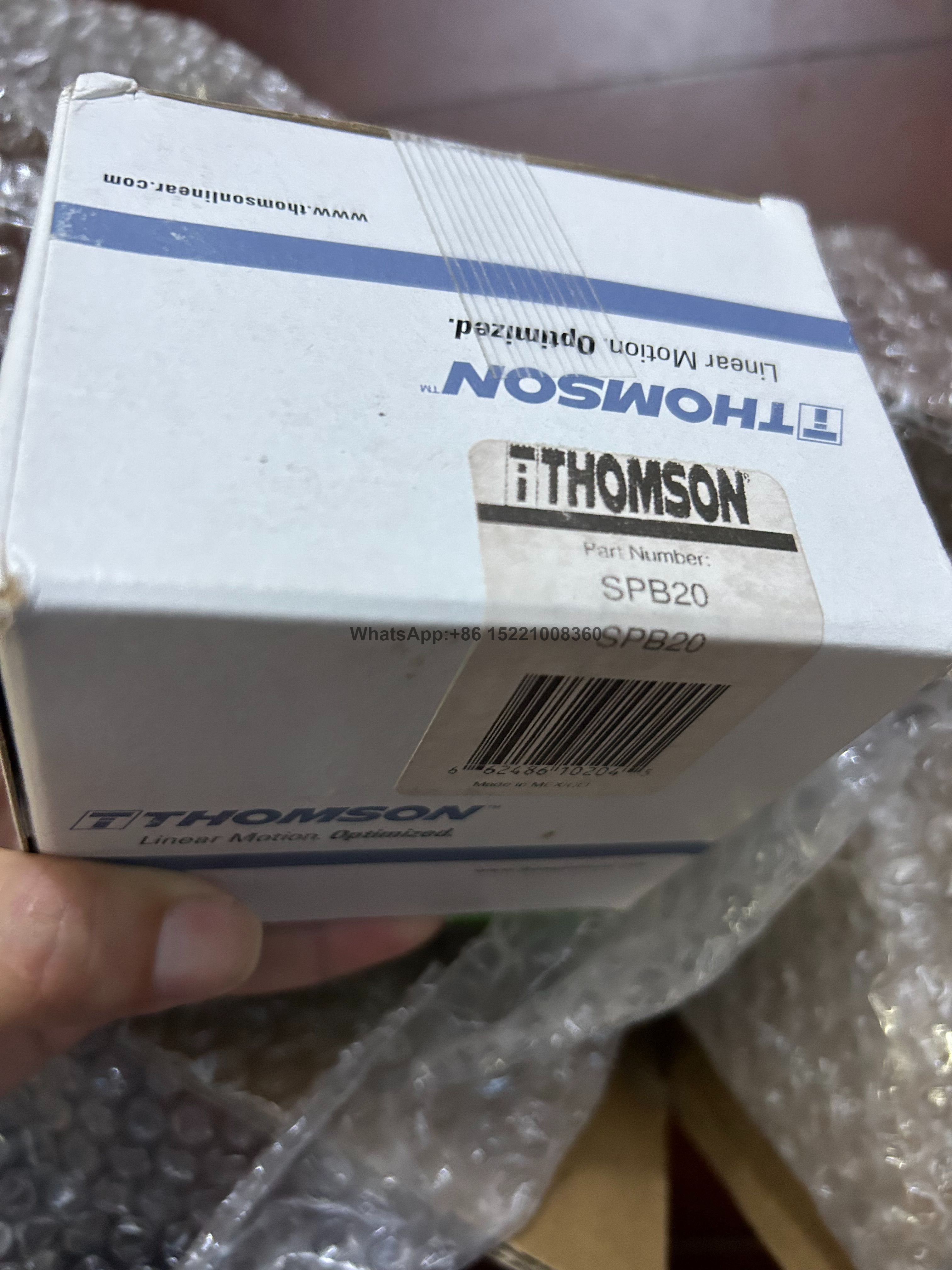

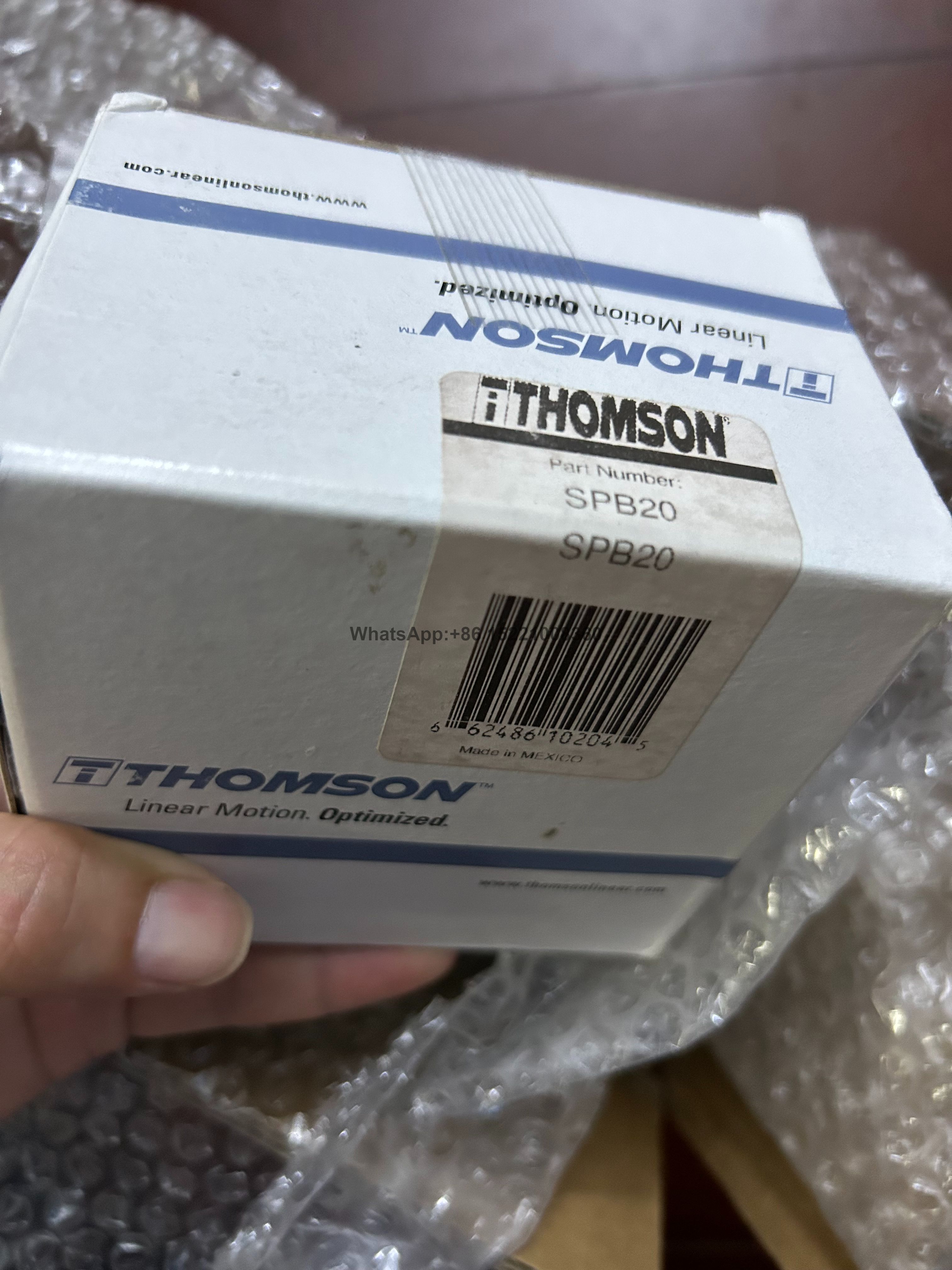

SPB20
THOMSON
| Quantity: | |
|---|---|
Thomson, Linear Bearings, Super Ball Bushing Bearing, SPB20
SUPER, Ball Bushing Bearing Pillow Block, 1.250 in, Open, Self-Aligning, Open Type for continuously supported applications, Not Corrosion Resistant, Integral Double Acting Seals
| Dimension | Value |
|---|---|
| A | 101.60 mm (4.000 in) |
| a | 30.00 ° (30.000 °) |
| A1 | 38.10 mm (1.500 in) |
| A2 | 41.40 mm (1.630 in) |
| B | 85.85 mm (3.380 in) |
| d | 31.75 mm (1.250 in) |
| E | 15.75 mm (0.620 in) |
| E1 | 88.90 mm (3.500 in) |
| E2 | 50.80 mm (2.000 in) |
| F1 | 11.18 mm (0.440 in) |
| G | 29.21 mm (1.150 in) |
| G1 | 46.48 mm (1.830 in) |
| G2 | 1/4-28 |
| H | 38.10 mm (1.500 in) |
| H1 | 63.50 mm (2.500 in) |
| N | 5.59 mm (0.220 in) |
| N | #10 |
