BPK02-d30B-PP CF30-2VBUU CF30-2FVBUU CF30-2BUU
| Quantity: | |
|---|---|
Item NumberCF30-2VBUU IKO
Also known asKRV90-PP-X-SK
CategoryCam Follower
VFull Complement Type
BWith Hexagon Hole
UULip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃. If Letter R Is In The Suffix, Than The Cam Follower Is With Crowned Outer Ring, Otherwise It's A Cylindrical Running Surface (X)

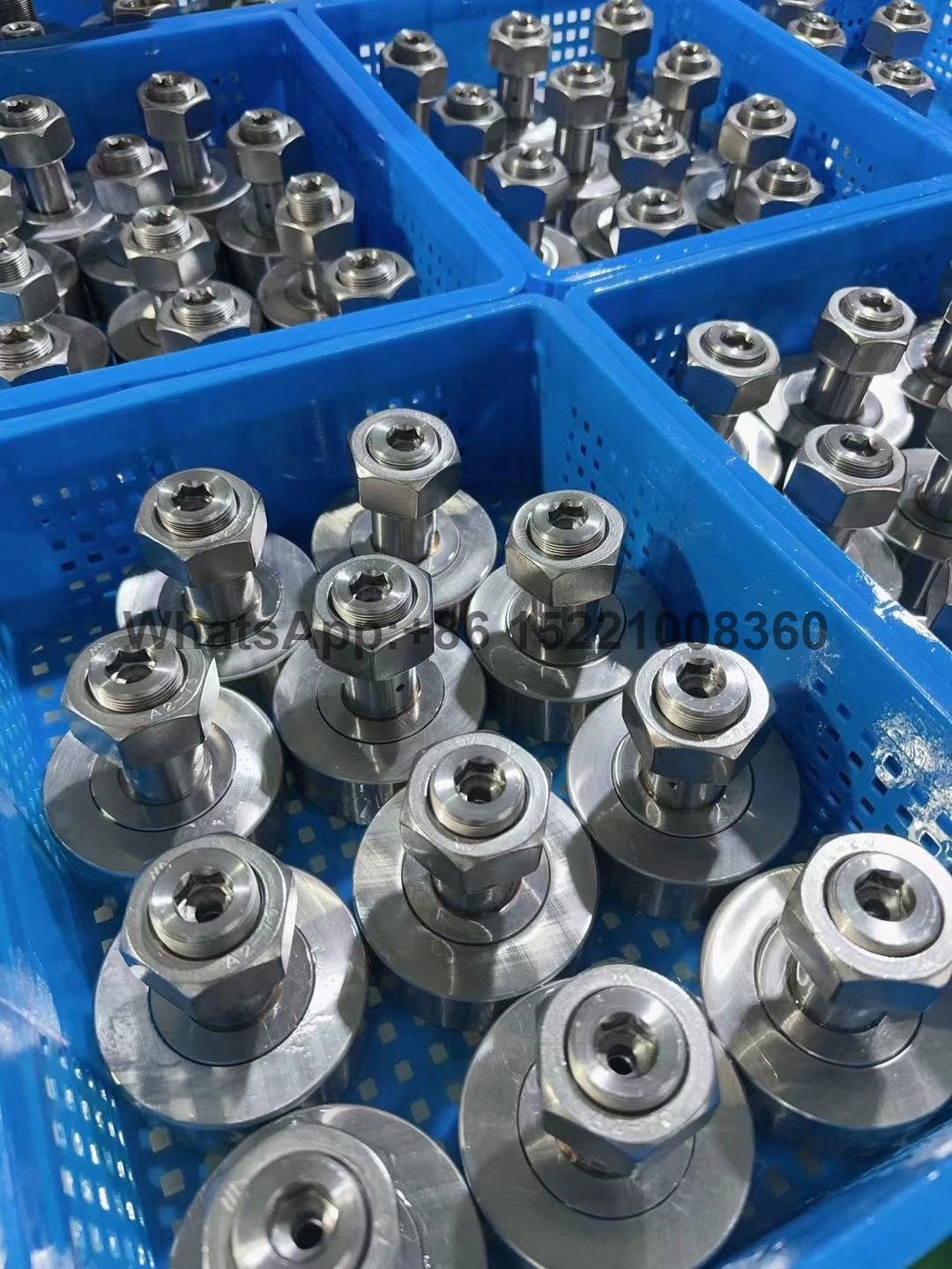

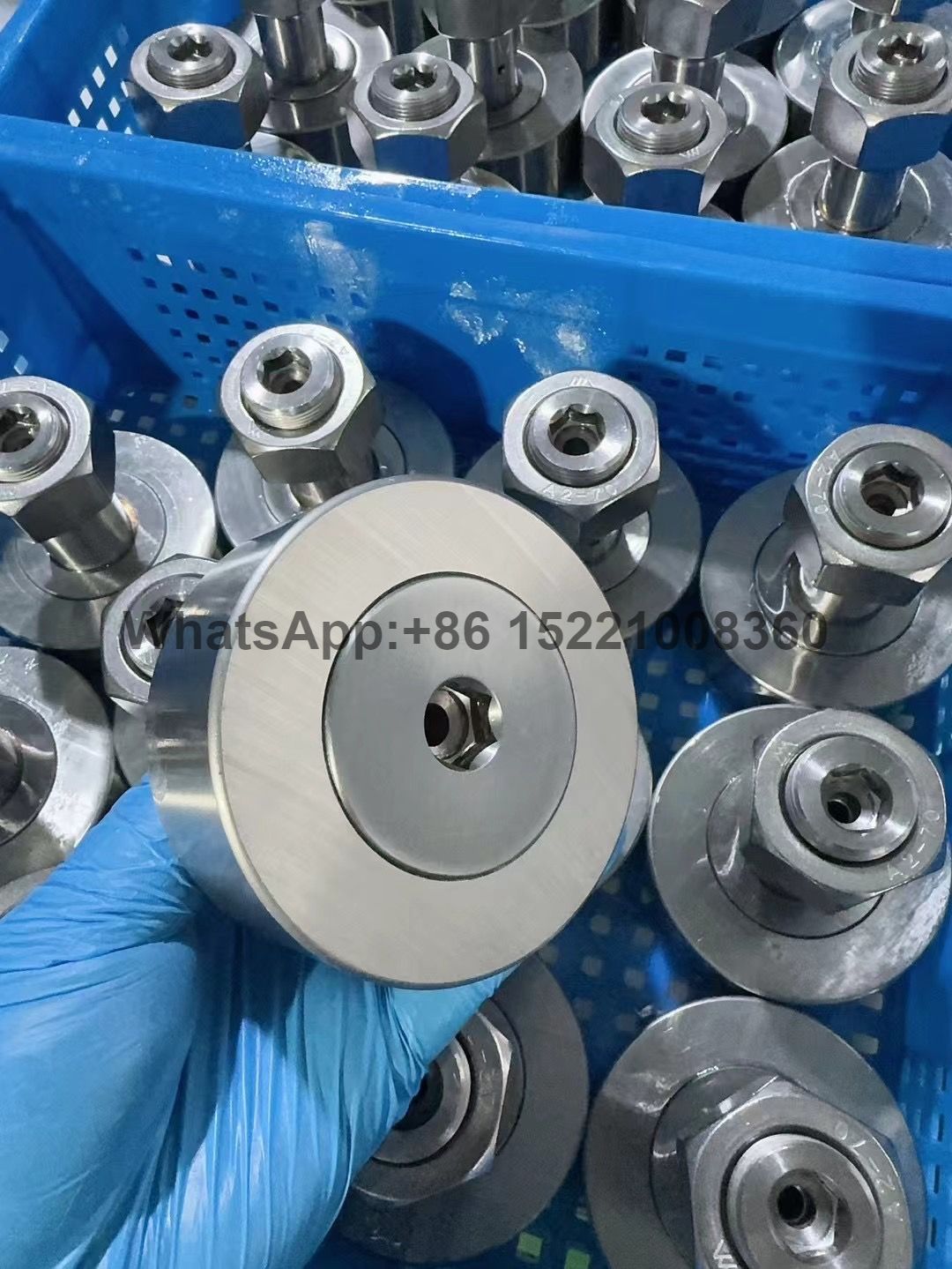

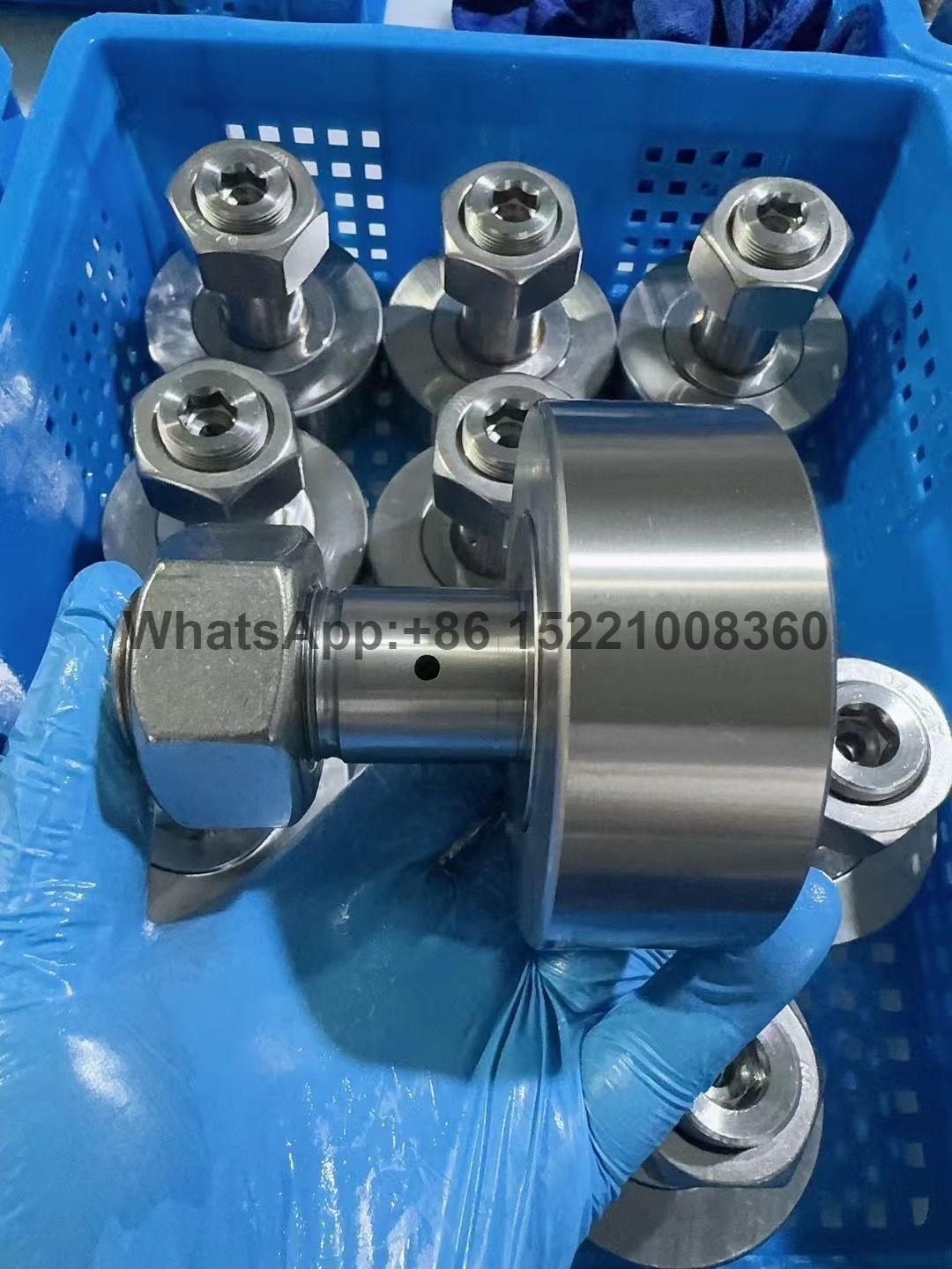

The CF30-2VBUU is a cam follower with needle rollers. These rolling elements combine high load capacity with a compact design. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.
The CF30-2VBUU IKO has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this cam follower radially highly loadable. Full complement cam followers are also more shock-resistant than cam followers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of cam followers include conveyor systems, linear guidance systems, and cam mechanisms.
Item NumberCF30-2VBUU IKO
Also known asKRV90-PP-X-SK
CategoryCam Follower
VFull Complement Type
BWith Hexagon Hole
UULip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃. If Letter R Is In The Suffix, Than The Cam Follower Is With Crowned Outer Ring, Otherwise It's A Cylindrical Running Surface (X)
The CF30-2VBUU is a cam follower with needle rollers. These rolling elements combine high load capacity with a compact design. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.
The CF30-2VBUU IKO has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this cam follower radially highly loadable. Full complement cam followers are also more shock-resistant than cam followers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of cam followers include conveyor systems, linear guidance systems, and cam mechanisms.
