THK Linear Block Bearing Carriage Guide Slide SHW35CA1UU+680L

•Caged ball design provided high-speed rotation, a low noise level, and extended service life.
•Balls travel in four precision-ground raceways on an LM rail through the LM block, and endplates incorporated in the LM block.
•Each row of balls is placed at a contact angle of 45°so that the rated loads applied to the LM block are uniform in all four directions (radial, reverse-radial and lateral directions) for a constant low friction coefficient, and increased rigidity.
•Blocks self-adjust enabling mounting error to be absorbed, even under a preload, for highly accurate, smooth linear motion.

Model:
SHW35CA1UU+680L
Brand:
THK
Code:
SHW35CA1UU+680L

Availability:

Quantity:



Inquire Add to Basket

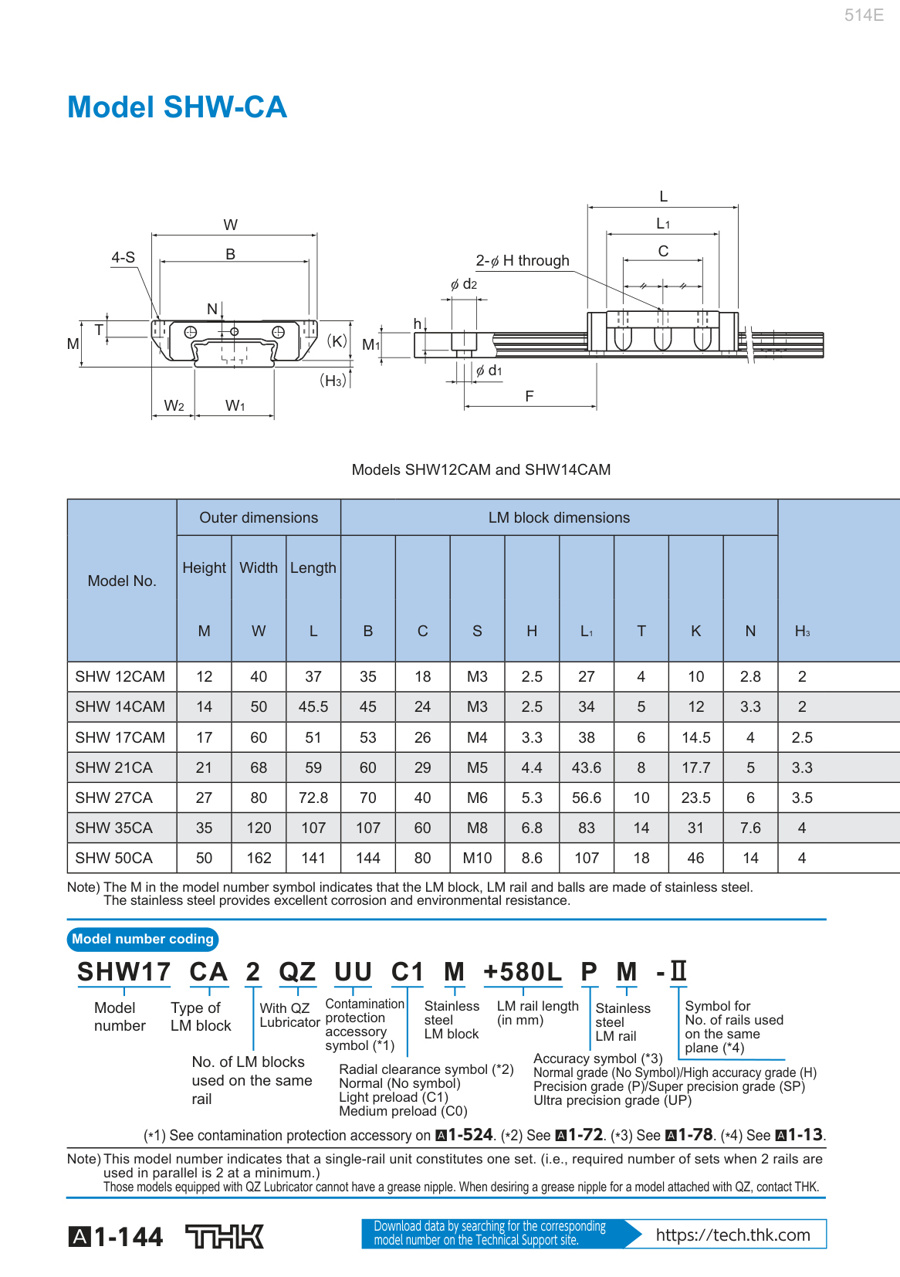

Product Description

Set/Single Item	Block Only	Block Type	[Wide] CA: Flanged w/Tapped Holes and Middle Holes
Rail Type	Wide Rail	Mounting Height M(mm)	35
Material	Carbon Steel	Radial Clearance	Normal
Accuracy Grade	Normal Grade (Best Leadtime)	Ball Arrangement	4-Row Circular
Retainer	Available	Lubrication System	None
Rolling Element	Ball	Basic Load Rating Dynamic Rating C(N)	35500
Basic Load Rating Static Rating Co(N)	49200	Allowable Static Moment MA(N⋅m)	603
Allowable Static Moment MB(N⋅m)	603	Allowable Static Moment MC(N⋅m)	1630
Nominal Part Number	35	Block Mounting Hole Pitch (Width Direction)(mm)	107
Block Mounting Hole Pitch (Length Direction)(mm)	60	Block Mounting Hole Diameter	8
Symbols for Dust Resistance	UU: End seal	Grease Nipple Option	None
Block external dimension W(mm)	120	Block external dimension L(mm)	107
Mounting hole for blocks	Tapped and Thru Holes	Number of Block Mounting Holes(holes)	6
Mounting Hole Dimension S(M)	M8	Mounting Hole Dimension H(ø)	6.8
Mounting Hole Screw Depth(mm)	Through	Block dimension L1(mm)	83
RoHS	10	-	-
