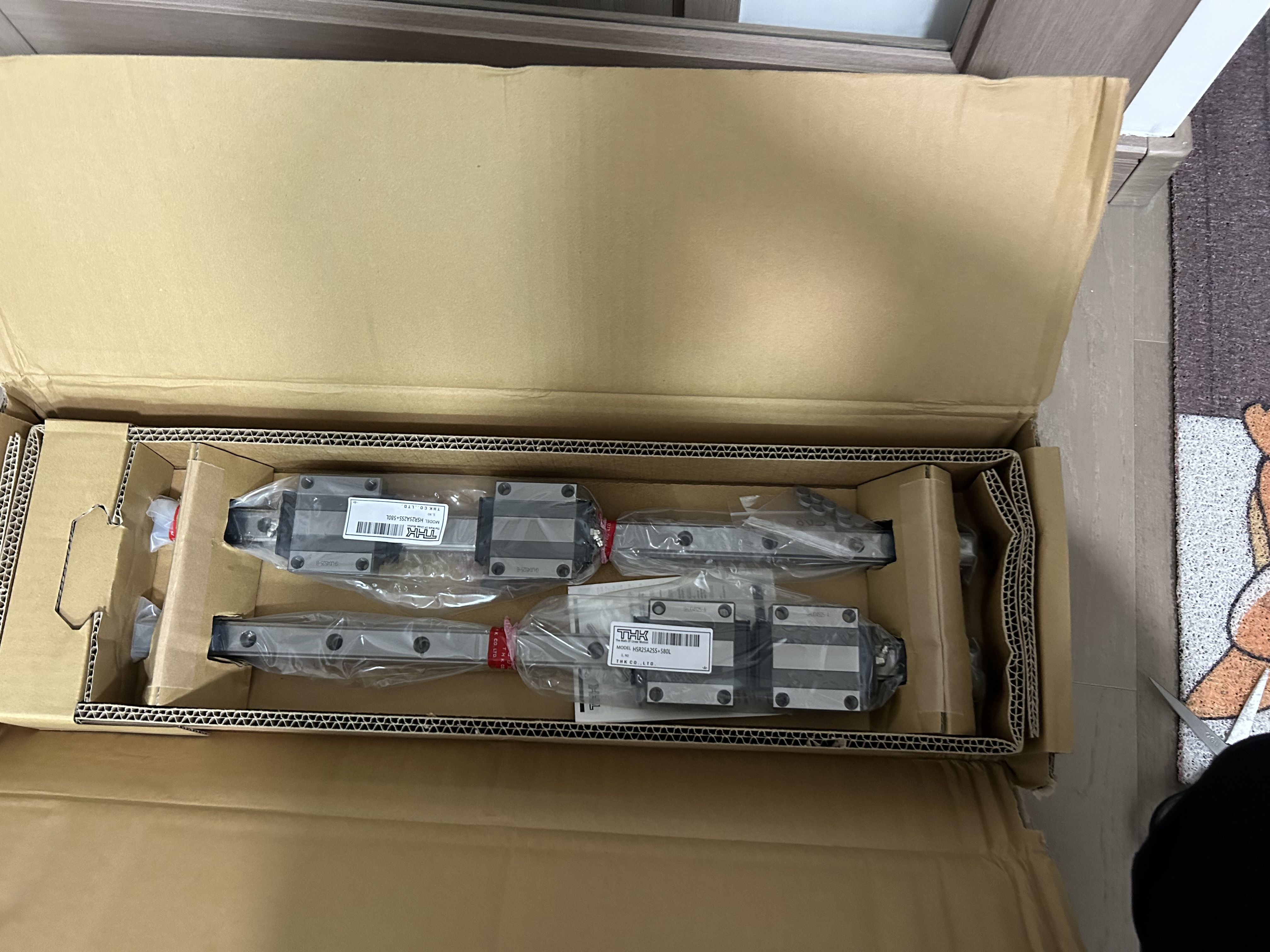

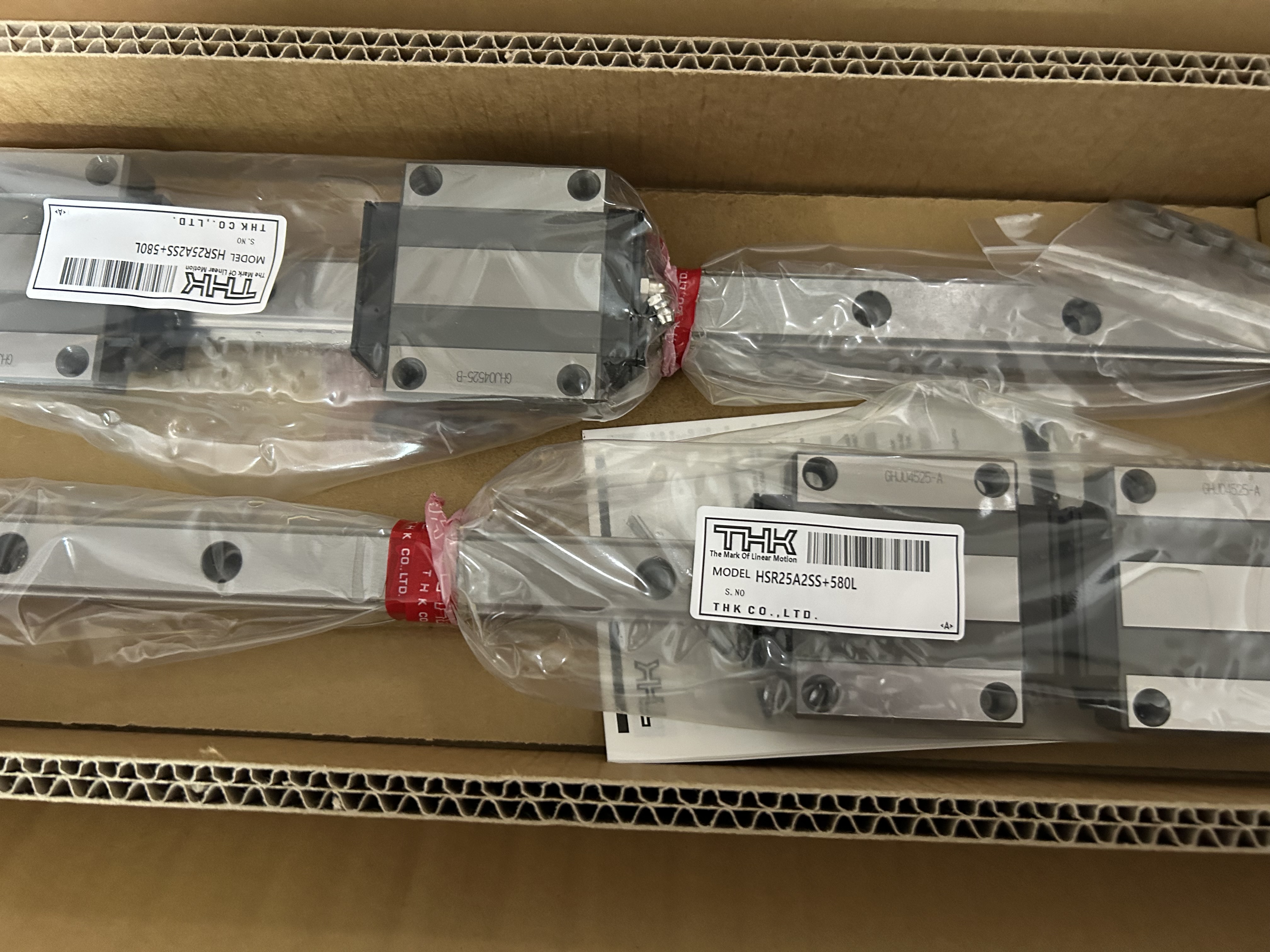

HSR25-580L RAIL THK Linear Motion Guides

More about :THK HSR25A

AFB-LF is the default grease. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

Model No.	Outer dimensions			Block dimensions			Rail dimensions		Basic load rating
									Radial
	Height M	Width W	Length L	B	C	S	Pitch F	d1xd2xh	Dynamic C	Static C0
	mm	mm	mm	mm	mm	mm	mm	mm	kN	kN
HSR15A	24	47	56.6	38	30	M5	60	4.5x7.5x5.3	10.9	15.7
HSR20A	30	63	74	53	40	M6	60	6x9.5x8.5	19.8	27.4
HSR25A	36	70	83.1	57	45	M8	60	7x11x9	27.6	36.4
HSR30A	42	90	98	72	52	M10	80	9x14x12	40.5	53.7
HSR35A	48	100	109.4	82	62	M10	80	9x14x12	53.9	70.2
HSR45A	60	120	139	100	80	M12	105	14x20x17	82.2	101
HSR55A	70	140	163	116	95	M14	120	16x23x20	121	146
HSR65A	90	170	186	142	110	M16	150	18x26x22	195	228

Application of THK THK HSR25A
1. THK HSR25A THK’s linear motion system helps to provide a guide device that enables this precision and speed to be realized.
2. THK HSR25A In order to repeat the production of this advanced product, the LM guide and ball screw in the milling machine guide system which don’t waste of action
3. The LM guide and ball screw are indispensable for the movement of the tool section of the lathe because of its high rigidity and high precision.
4. By combining LM guides and ball screws with lubrication parts, we can reduce system design work and assembly steps, and extend the interval needed for maintenance.
5. Frequent earthquakes have caused great concern among residents in some regions. The vibration control system of THK THK HSR25A can help solve the problem.
The system is based on the application technology of LM guide ball screw. It can provide protection to people's life and life in earthquake. The system can not only prevent the damage caused by the earthquake, but also reduce people's panic because of its omnipresent, reliable and durable.
