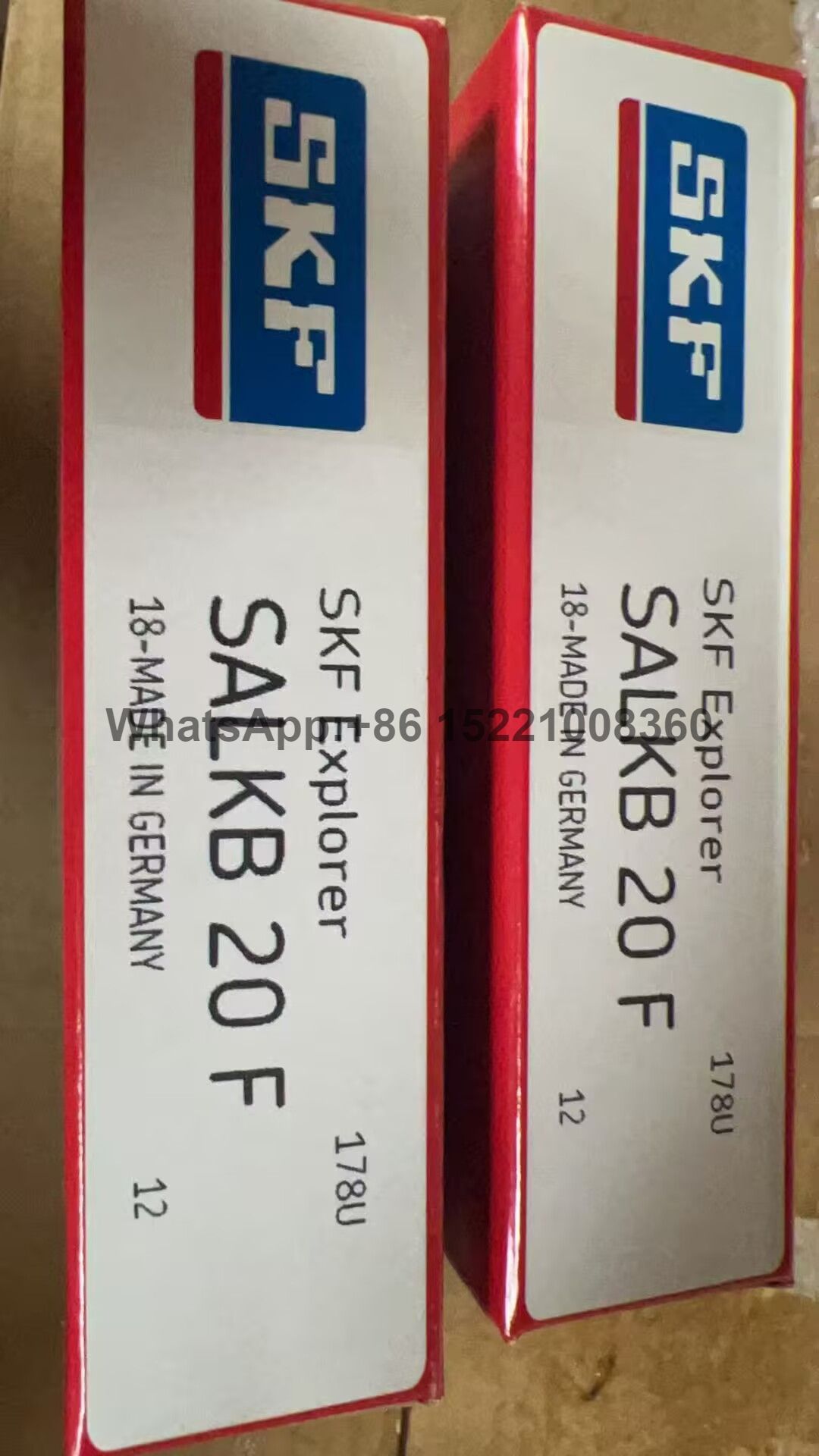

SALKB 20 F
SKF
SALKB 20 F
| Quantity: | |
|---|---|
SALKB 20 F SKF BEARINGS Rod Ends
These SKF rod ends have an injection moulded sliding layer of PTFE FRP between the housing and the inner ring. This sliding contact surface combination is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread.
Long service life
Maintenance-free
Relatively insensitive to contaminants
Low coefficient of friction
Simple and ready-to-mount
| Bore diameter, bearing inner ring | 20 mm |
| Outside diameter, housing eye | 51 mm |
| Width, bearing inner ring | 25 mm |
| Thread designation | M 20x1.5 |
| Width, housing eye | 18.5 mm |
| Centre height, housing (from end of shank) | 78 mm |
| Housing length, total | 106 mm |
| Basic dynamic load rating | 31 kN |
| Basic static load rating | 50 kN |
| Sliding contact surface combination | Steel/PTFE FRP |
| Material, housing | Steel |
| Material, inner ring | Bearing steel |
| Maintenance | Maintenance-free |
| Attachment feature, rod end shank | Left-hand male thread |
| Sealing | Without |
| Product net weight | 0.344 kg |
| eClass code | 23-05-01-05 |
| UNSPSC code | 31171508 |
