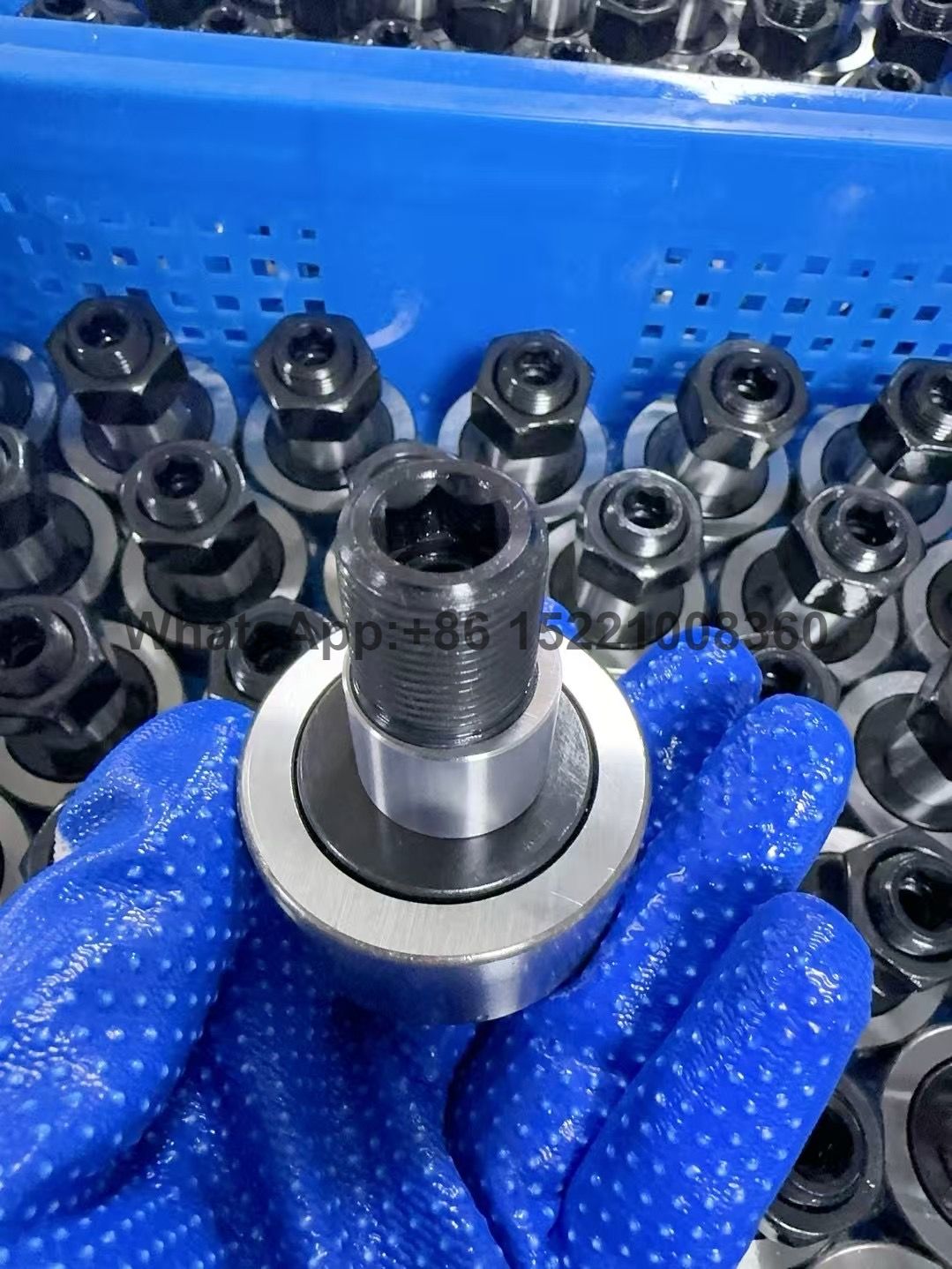

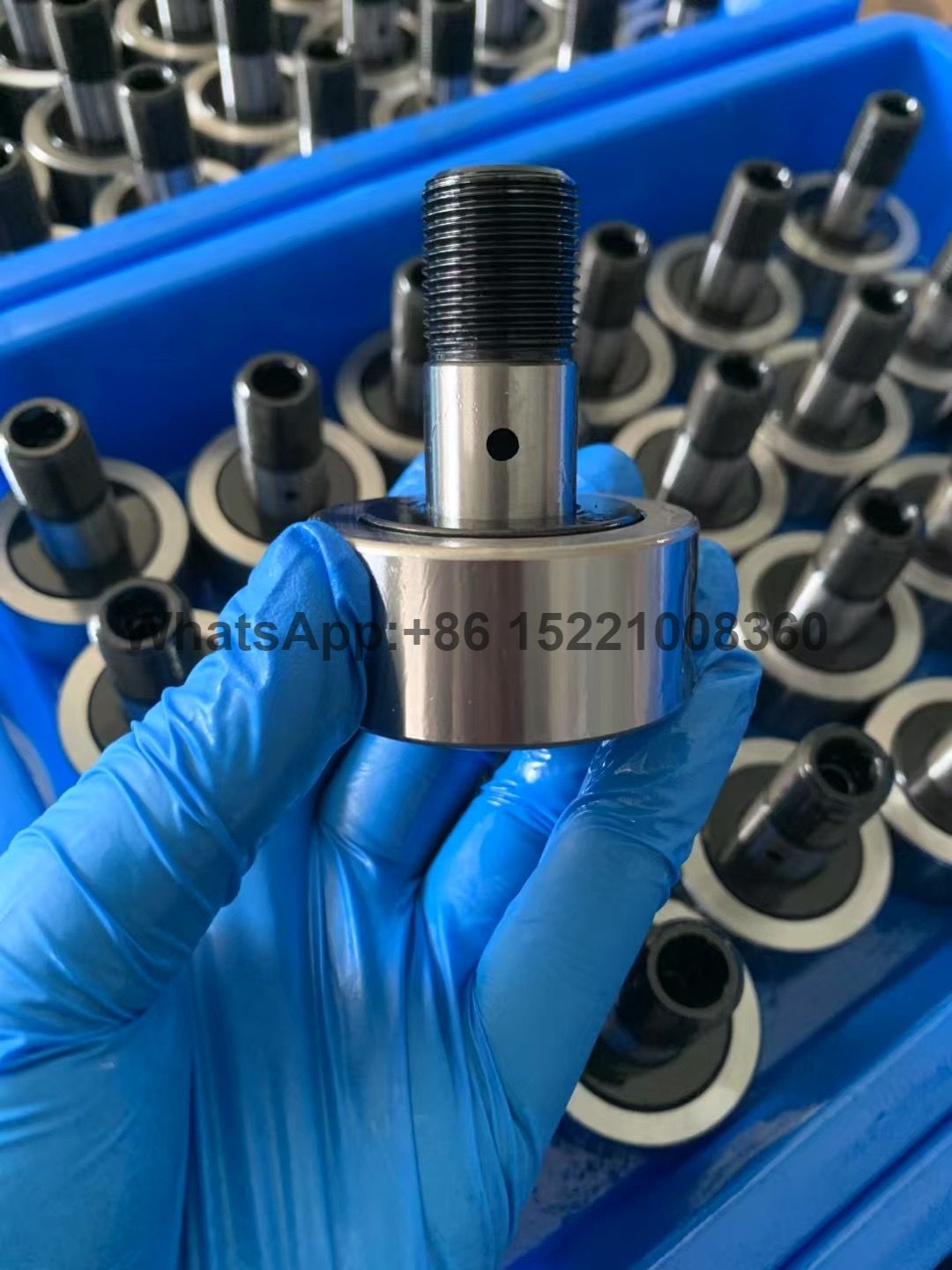

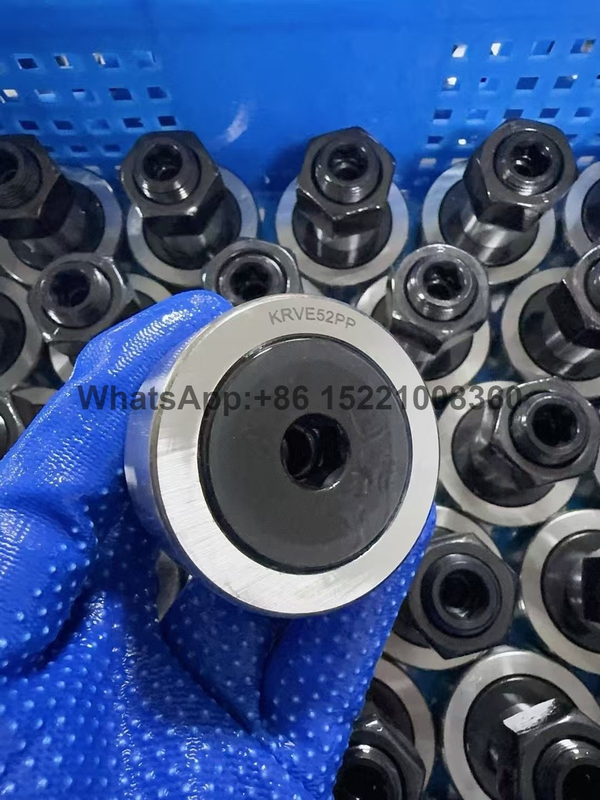

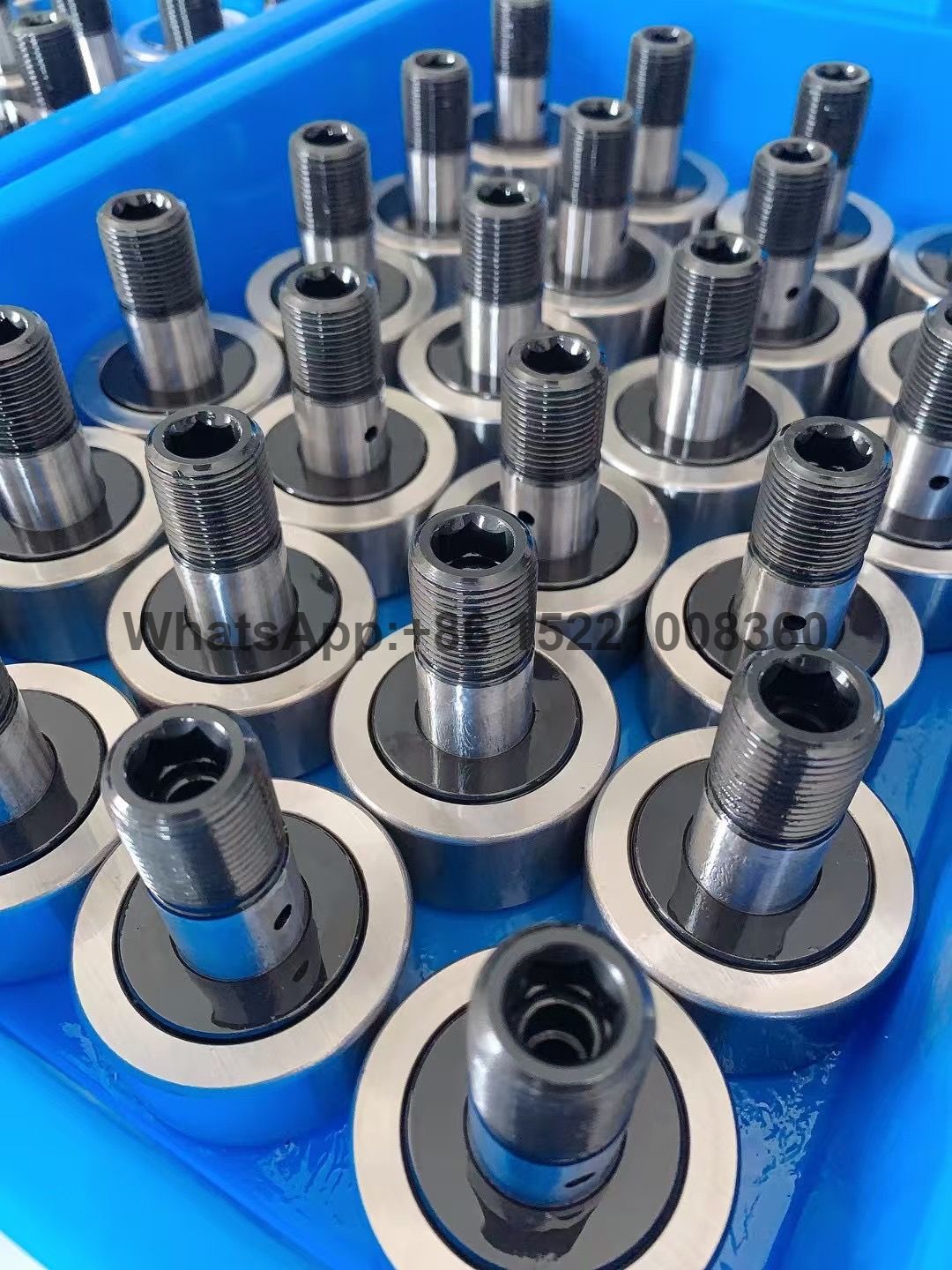

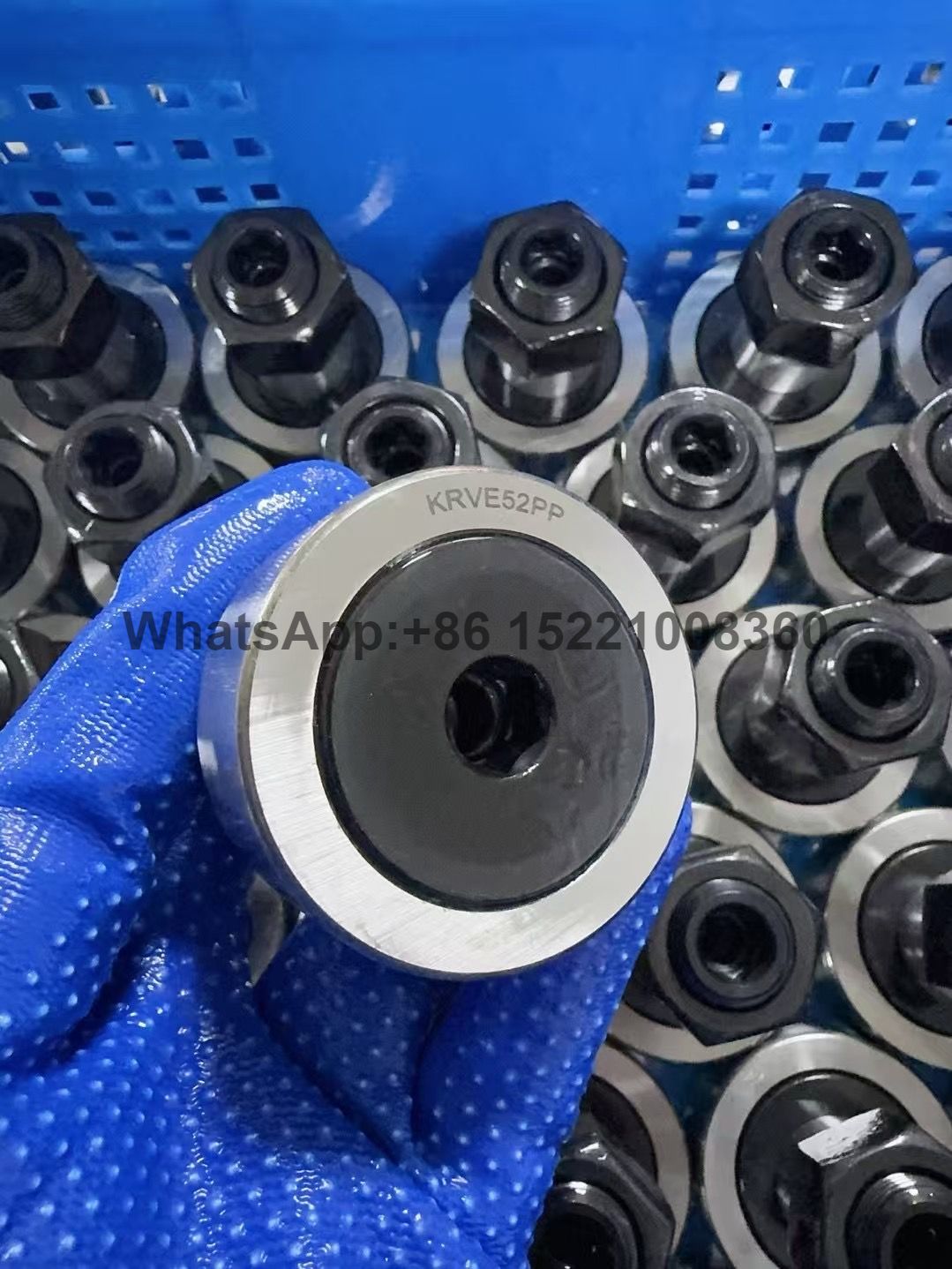

KRVE52PP Budget Stud Type Track Roller Full Comp follower with needle rollers
The KRVE52PP is a cam follower with needle rollers. These rolling elements combine high load capacity with a compact design. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.
The KRVE52PP SKF has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this cam follower radially highly loadable. Full complement cam followers are also more shock-resistant than cam followers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of cam followers include conveyor systems, linear guidance systems, and cam mechanisms.
Availability0 pcs
BrandSKF
Item Number KRVE52PP
Also known as KRVE52-PP-A
Category Cam Follower
Inner (d) MM24
Outer (D) MM52
Width (B) MM24
Inner (d) Inch0.9449
Outer (D) Inch2.0472
Width (B) Inch0.9449
Weight (kg)0.461
Seal2L - LS-seal at Both Sides
ExcenterringE - Excenterring with Inbus Mount
Running SurfaceStandard
