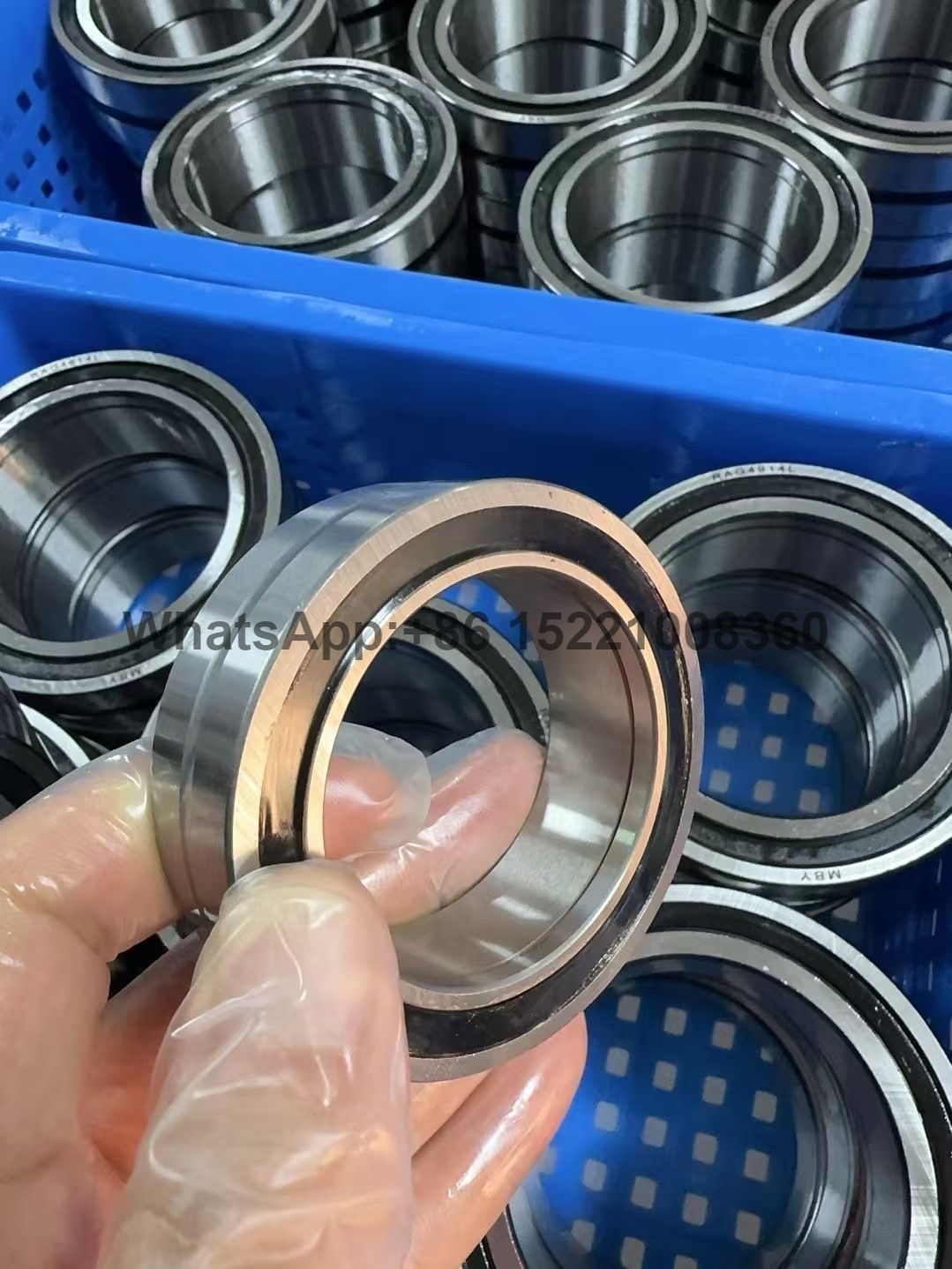

Full-complement Double-row Cylindrical Roller Bearing NAG4912
Availability2 pcs
BrandIKO
Item NumberNAG4912 IKO
CategoryCylindrical Roller Bearing Double Row
Inner (d) MM60
Outer (D) MM85
Width (B) MM25
Inner (d) Inch2.3622
Outer (D) Inch3.3465
Width (B) Inch0.9843
Weight (kg)0.425
BoreC - Cylindrical Bore
SealNo Seal
Cage TypeFC - Full Complement, No Cage
External ModificationNo External Modification
Radial Internal PlayCn Normal Internal Play
PrecisionStandard Precision
Heat StabilizationNo Heat Stabilization - Temperatures up to 120 °C
The NAG4912 is a full-complement double-row cylindrical roller bearing. This bearing has a particularly high radial load capacity. The design consists of a solid inner and outer ring with a double row of cylindrical rollers. These rolling elements are guided between flanges. Since there is no cage, a maximum number of rollers can be used. This type of bearing is therefore suitable for very heavy loaads where lower rotational speeds are involved.
