BLXH25FN
STAF
BLXH25FN
| Quantity: | |
|---|---|

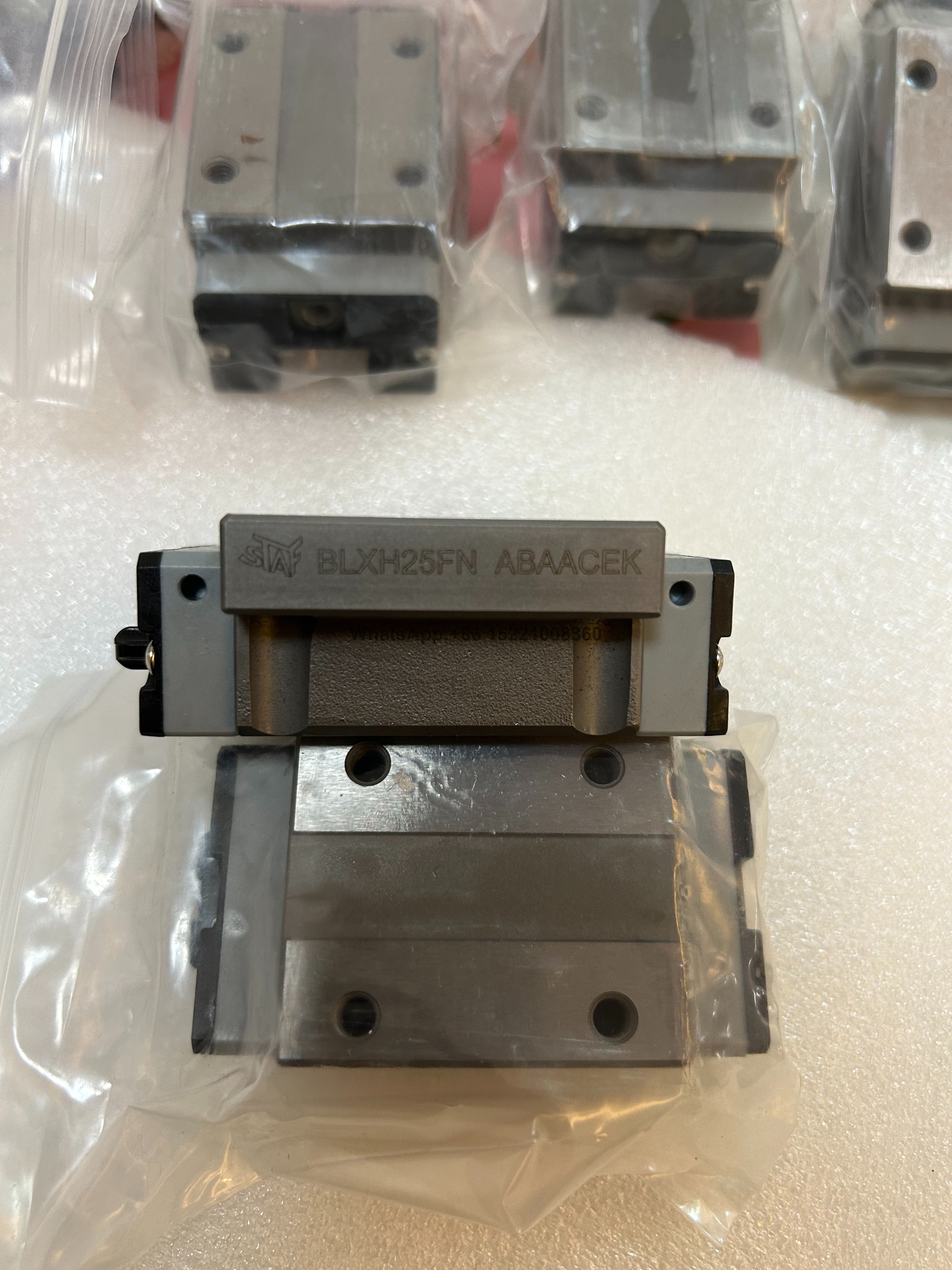

STAF Linear Bearing Block Carriage BLXH25FN Linear Guide Rail Block
Linear motion bearing BLXH25FN (support block).
Block height = 30.2 mm. BLXH25FN is an updated BGXH25FN, BLXH25FN has new end seals that are 2 mm wider than the old ones. Because of this, BLXH is 4 mm longer than BGXH, 2 mm on each side. BGXH will no longer be produced.
Carriage type - F (flange)
Mounting type - from top and bottom.
N - accuracy class "normal"
H - high
Z1 - light preload.
Specifications
Landing size
25
Product length, mm
81.5
Width, mm
70
Manufacturer
Staf
Country of Origin
Taiwan (China)
Weight
0.610
