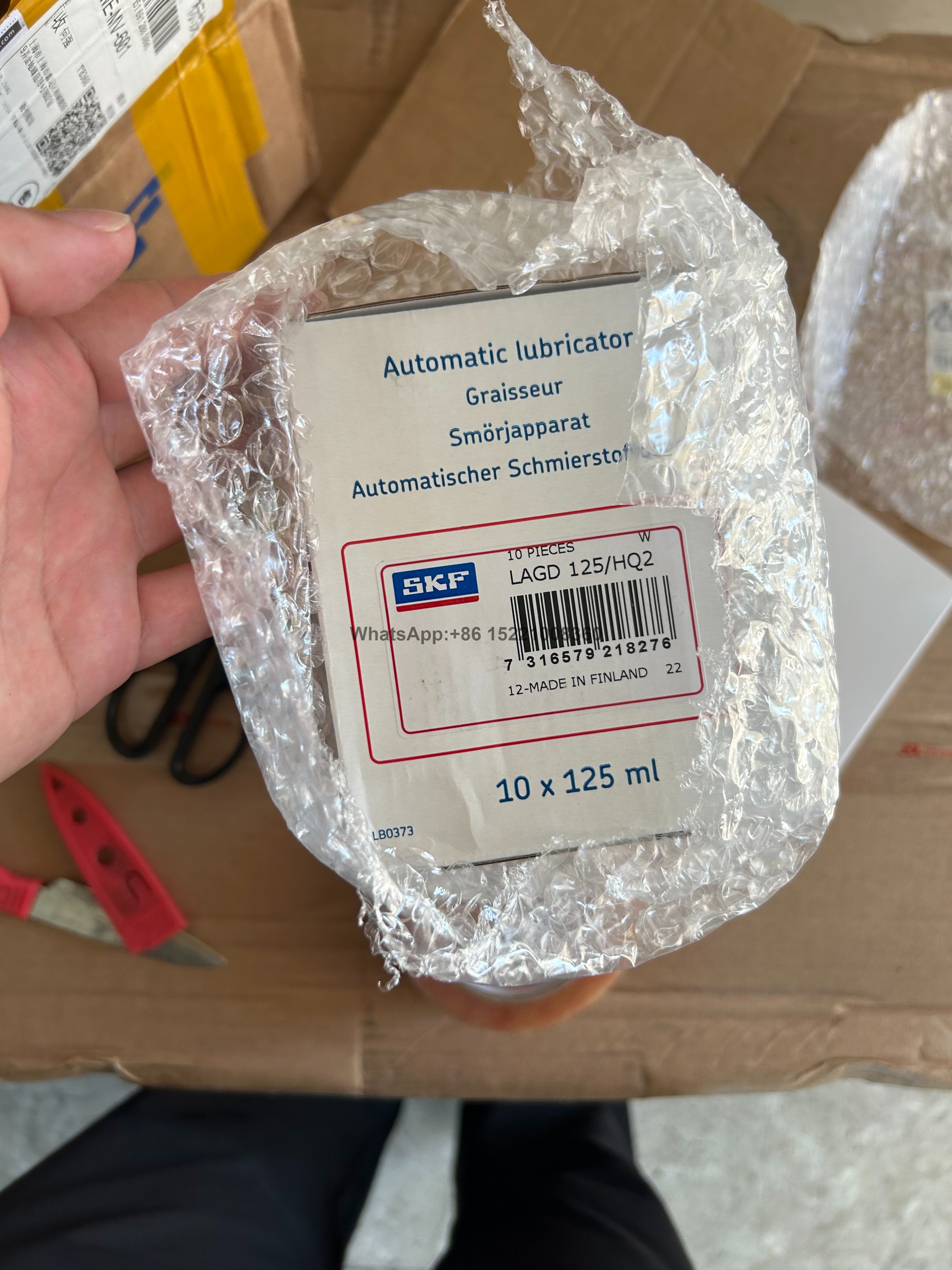

LAGD 125/HQ2 - Single Point Lubricators - Gas Driven | SKF

LAGD 125/HQ2 is filled with SKF LGHQ 2 grease for high temperatures and high speeds recommended for electric motors, fans and pumps. Our gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.

• Flexible dispense rate from 1 to 12 months

• ATEX zone 0 approved

• Transparent lubricant container allows visual inspection of dispense rate

• Compact size, suitable for restrictive areas

• Improved reliability and optimized maintenance



• Performance

  Maximum pressure

  5 bar

• Properties

  Ambient temperature range	-20.0  –  60.0 °C
  Connecting thread	R 1/4
  Degree of protection (IP)	IP 68
  Drive mechanism	Gas cell producing inert gas
  Intrinsically safe approval	II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
  Lubricant	LGHQ 2
  Lubricant description	Wide temperature range electric motor bearing grease
  Lubricant operating temperature range	–30 to +160 °C
  Lubricant quantity	125 ml
  Maximum feed line length	0.3 m
  Nominal emptying time	Adjustable, 1–12 months
  Nominal emptying time	1.0  –  12.0 mo
  Power source	Gas cell
  Recommended applications	Electric motors Industrial fans Water pumps Vertical shaft applications
  Recommended storage temperature	20 °C
  Shelf life	2 year

• Logistics

  Product net weight	0.19 kg
  UNSPSC code	15121902
  eClass code	23-06-10-14
