43550-30030
XHY
43550-30030
| Quantity: | |
|---|---|

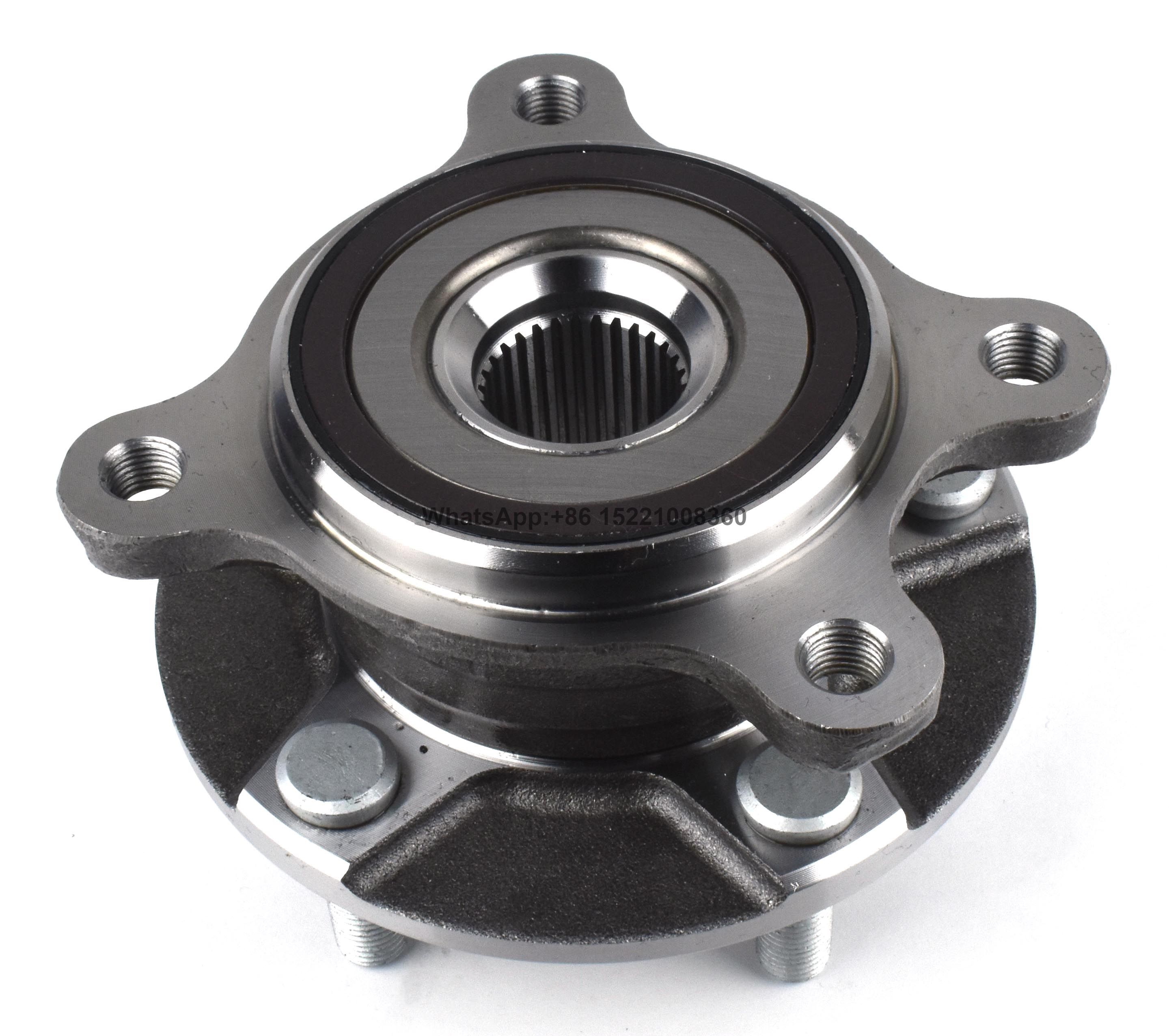

Front Rear Wheel Hub Bearing 43550-30030
Wheel hub bearings are components used on automobile axles to bear load and provide precise guidance for the rotation of the wheel hub. They bear both axial and radial loads and are an important part of the vehicle's load-bearing and rotation.
Many types of bearings have been designed to meet the specific requirements of the automotive industry. They are primarily Angular Contact Ball Bearings, with additional features to suit industry requirements.
We have developed numerous automotive bearings for:
Wheel applications
Clutch release
Steering assemblies
Car air conditioners
Hub unit assemblies
Water pumps of automobiles
Apart from the above specially developed automotive bearings, many standard bearings are also used in automotive applications.
Other special types of automotive bearings have also been developed to meet specific application requirements. Technical information for such bearings that do not appear in our regular production program can be made available whenever required.
| JT No | Bearing No | d | F | B | E1 | E2 | Bolt Size | Hole Dia |
| 1DACF6-98/44 | DACF1083CR | 30 | 117 | 37 | 57.9 | 58.9 | -- | 4*M12*1.25 |
| 1DACF6-98/44-I | 633622-1 | 30 | 116 | 37 | 58 | 59 | -- | 4*M12*1.25 |
| 1DACF6-98/44-II | BAFB633807D | 30 | 117 | 37 | 57.9 | 58.9 | -- | 4*M12*1.25 |
| 1DACF6-98/44-III | DACF1083CR-1 | 30 | 117 | 37 | 57.9 | 58.9 | -- | 4*M12*1.25 |
| 1DACF6-98/44- | 633622 | 30 | 117 | 37 | 57.9 | 58.9 | -- | 4*M12*1.25 |
| 1DACF6-98/44-V | 633622-2 | 30 | 116 | 37 | 58 | 59 | -- | 4*M12*1.25 |
| 1DACF6-98/44- | 633622-3 | 30 | 116 | 37 | 58 | 59 | -- | 4*M12*1.25 |
| 1DACF6-100/562 | 513030 | 30 | 122 | 47 | 54 | 55 | 4*M12*1.5 | -- |
| 1DACF6-108/436 | IR-8688 | 32 | 129 | 38 | 65 | 71 | -- | 4*M12*1.25 |
| 2DACF5-100/425 | 803199A | 25 | 120 | 37 | 57 | 65 | -- | 4*M12*1.5 |
| 2DACF4-108/42-1 | TKR8578 | 25 | 128 | 34 | 64.9 | 71 | 4*M12*1.25 | -- |
| 2DACF6-100/545 | TKR8569 | 25 | 132.5 | 43 | 60 | 65.9 | -- | 4*M12*1.5 |
| 2DACF8-100/495-II | HUB002 | 25 | 134 | 40 | 56 | 61 | 4*M12*1.5 | -- |
| 2DACF7-108/54 | TGB12096S41 | 25 | 133 | 43 | 60 | 66 | -- | 5*M12*1.5 |
| 2DACF4-100/45 | HUB048-35ABS | 27 | 134 | 40 | 59 | 61 | 4*M12*1.25 | -- |
| 2DACF4-100/526 | HUB184 | 27 | 134 | 50 | 58.9 | 68 | 4*M12*1.25 | -- |
| 2DACF4-100/526-I | HUB184ABS | 27 | 134 | 50 | 58.9 | 68 | 4*M12*1.25 | -- |
| 2DACF4-1143/526 | (N16)HUB184 | 27 | 148 | 50 | 65.9 | 67.9 | 4*M12*1.25 | -- |
| 2DACF4-1143/526-I | (N16)HUB184ABS | 27 | 148 | 50 | 65.9 | 67.9 | 4*M12*1.25 | -- |
| 2DACF4-1143/574 | 27BWK03 | 27 | 148 | 55 | 66 | 68 | 4*M12*1.25 | -- |
| 2DACF4-100/495 | 35016 | 28 | 120 | 40 | 60 | -- | 4*M12*1.25 | -- |
| 2DACF4-100/495-I | 28BWK15 | 28 | 120 | 40 | 60 | -- | 4*M12*1.25 | |
| 2DACF4-100/505 | 57210-25000 | 28 | 140 | 38 | 54 | 62.5 | 4*M12*1.5 | -- |
| 2DACF4-100/505-I | 57210-25100 | 28 | 140 | 38 | 54 | 62.5 | 4*M12*1.5 | -- |
| 2DACF4-100/565 | DACF1050B | 28 | 125.5 | 48 | 56 | 64 | 4*M12*1.5 | -- |
| 2DACF5-100/59 | 512154 | 28 | 135.4 | 47 | 56.8 | 57.3 | 5*M12*1.5 | -- |
| 2DACF5-100/435 | BAF0058B | 28 | 120 | 39 | 57 | 65 | 4*/M12*1.5 | -- |
| 2DACF5-100/525 | 512023 | 28 | 135.3 | 40 | 56.8 | 57.3 | 5*M12*1.5 | -- |
| 2DACF5-100/575 | 512167 | 28 | 135 | 48 | 56.8 | 57.3 | 5*M12*1.5 | -- |
| 2DACF5-1143/505-I | 52710-29XXX | 28 | 139 | 38 | 66.9 | 76 | 4*M12*1.5 | -- |
| 2DACF5-1143/505-II | 52710-29450 | 28 | 139 | 38 | 66.9 | 76 | 4*M12*1.5 | -- |
| 2DACF5-1143/505-III | 52710-29671 | 28 | 139 | 38 | 66.9 | 76 | 4*M12*1.5 | -- |
| 2DACF5-1143/505- | 52710-22400 | 28 | 139 | 38 | 66.9 | 90 | 4*M12*1.5 | -- |
| 2DACF5-1143/505-V | 52710-22500 | 28 | 139 | 38 | 66.9 | 90 | 4*M12*1.5 | -- |
| 2DACF5-1143/505- | 52710-29400 | 28 | 139 | 38 | 66.9 | 76 | 4*M12*1.5 | -- |
| 2DACF6-100/57 | 28BWK06 | 28 | 141 | 50.5 | 56 | -- | 4*M12*1.5 | -- |
| 2DACF6-100/415 | 801191E | 28 | 120 | 39 | 57 | 65 | -- | 5*M14*1.5 |
| 2DACF6-100/415-I | 801191AD | 28 | 120 | 39 | 57 | 65 | -- | 5*M14*1.5 |
| 2DACF6-100/565 | 28BWK08g | 28 | 125.5 | 48 | 56 | 64 | 4*M12*1.5 | -- |
| 2DACF6-100/595 | HUB254 | 28 | 130 | 40 | 54 | 58 | 4*M12*1.25 | -- |
| 2DACF6-1143/495 | HUB065-15 | 28 | 134 | 40 | 60 | 64 | 4*M12*1.25 | -- |
| 2DACF7-100/495 | 513050 | 28 | 134 | 40 | 56 | 61 | 4*M12*1.5 | -- |
| 2DACF8-100/495 | HUB008 | 28 | 134 | 40 | 56 | 61 | 4*M12*1.5 | -- |
| 2DACF8-100/495-I | HUB008-72 | 28 | 134 | 40 | 56 | 61 | 4*M12*1.5 | -- |
| 2DACF8-935/545-I | 28WK19A | 28 | 134 | 45 | 56 | 61 | 4*M12*1.25 | -- |
| 2DACF4-97/519 | 28BWK12 | 28 | -- | 42 | -- | -- | -- | 4* |
| 2DACF4-90/44 | DACF1091 | 30 | -- | 50 | 66 | -- | -- | 4*M10*1.25 |
| 2DACF4-98/44 | BAF0013AD | 30 | 116.5 | 37 | 58 | 59 | -- | 4*M12*1.25 |
| 2DACF4-98/44-I | BAF0013E | 30 | 116.5 | 37 | 58 | 59 | -- | 4*M12*1.5 |
| 2DACF4-99/518 | DACF1097 | 30 | -- | 42 | -- | -- | -- | 4* |
100% Quality inspection to ensure the bearings are with good quality before shipping.
1. Professional production team with advanced production equipment and testing instruments.
2. Many years of export experience can provide customers with better service and problem-solving capabilities.
3. Customers all over the world enable us to better understand the market and provide customers with suitable bearings.
4. Sincerity, cooperation, mutual and provide good quality bearings for clients are the development idea of our company
5. Quick delivery, shipping goods on time. Save more time and cost for all customers.
