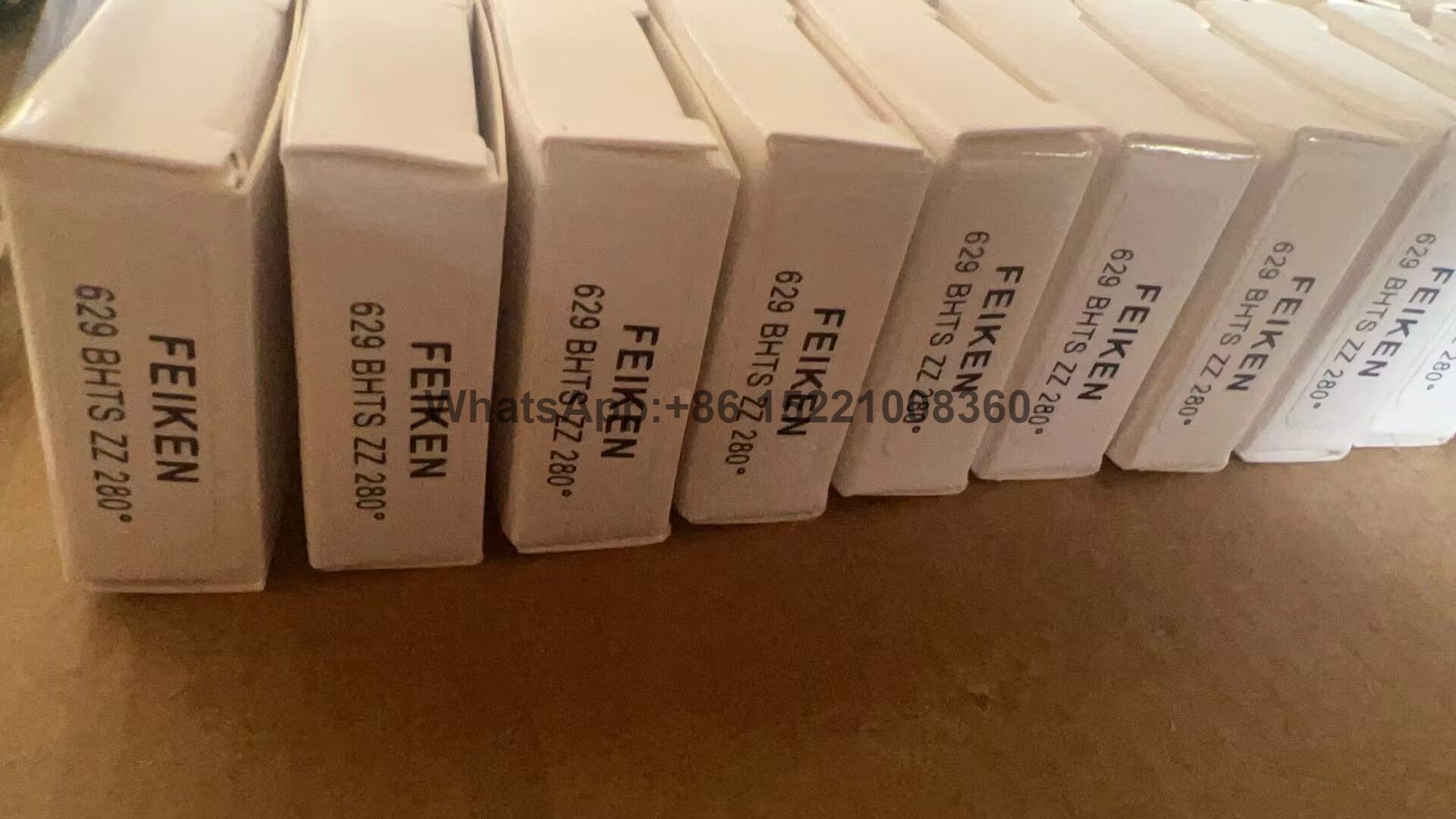

Ball Bearings for High Temperature 629 BHTS ZZ 280°

Ball Bearings for High Temperature 629 BHTS ZZ 280°

The BHTS ZZ 280° ball bearings are designed on the dimensions of a standard bearing but with treatments of stabilisation, surface treatment, radial clearance, grease and special shield that make them suitable for operation from -30° to +280°. Their recommended range of application is between 200° and 280° where these bearings achieve their best performance. Below 200° there are the BHTS ZZ C4 200° bearings available, which are cheaper and also allow a much higher rotational speed. The BHTS ZZ 280° bearings are currently available in approximately 400 different models, all of which are in stock and able to cover most of the requirements for bearings of high temperatures.

Material Steel AISI 52100 (Chrome) stabilized to the application Treatment of manganese phosphate coating on all steel parts Radial Clearance 4xC5 Shield ZZ Greasing with PTFE based on silicone free grease for temperatures up to 280°
613/3 BHTS ZZ 280°
623 BHTS ZZ 280°
604 BHTS ZZ 280°
605 BHTS ZZ 280°
625 BHTS ZZ 280°
606 BHTS ZZ 280°
626 BHTS ZZ 280°
607 BHTS ZZ 280°

627 BHTS ZZ 280°
608 BHTS  ZZ 280°
628 BHTS  ZZ 280°
609 BHTS ZZ 280°
629 BHTS ZZ  280°
