1020T10
XHY
1020T10
| Quantity: | |
|---|---|
| net weight lb | 4.19 |
| volume cdm | 3.54 |
| width in | 6 |
| length in | 6 |
| height in | 6 |
| min bore in | 0.5 |
| max bore in | 1.125 |
| max allowed speed rpm | 4500 |
| torque rating in lbs | 460 |
| size | T10-1020T |

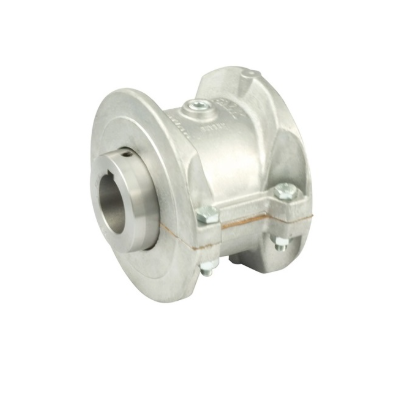

T10 Grid Coupling is a double-flexing, close coupled, general purpose design suited for use in four-bearing systems.
Features a horizontally split cover which allows for grid replacement without movement to the connected equipment
Available in 25 sizes ranging from 1020T through 1260T
Accommodates torque loads up to 8,250,000 lb-in (932,126 Nm) and shaft diameters up to 20" (508mm)
